MPN: SD210-SF2PASNM
BRAND: Sinclair Technologies
PRODUCT TYPE: Base Antenna
SKU: 19045

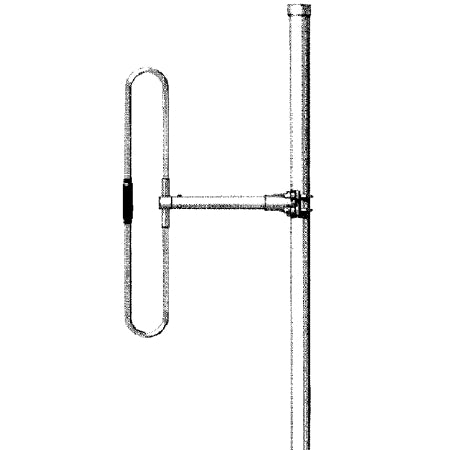

Sinclair Technologies SD210-SF2PASNM

138-174 MHz 2.5dB Exposed Dipole Antenna

$639⁹⁵

Shipping calculated at checkout.

Ships Separately: this item requires its own package

DOCUMENTS

Specs

SD210 SF2P2SNM(BT) SPEC SHEET

Description

Manufacturer

Sinclair

Model #

SD210-SF2PASNM

Product Description

138-174 MHz 2.5dB Exposed Dipole Antenna

Product Narrative

138 – 174 MHz single dipole antenna. 2 – 2.5 dB offset gain. 200 W. Includes harness with N Male termination. Order mounting clamps separately.

Gain (dB)

2.5

Maximum Input Power (Watts)

200

Bandwidth >1.5 VSWR

36

Vert. Beamwidth (-3dB)

68 Deg.

Lightning Protection

DC Ground

Direct Termination

Harness with N Male

Overall Length

5'

Support Pipe Dia.

1.9"

Rated Wind Velocity (MPH)

175 MPH

Wind Load, (sq ft)

.90

Weight(lb)

10 Lbs.

Mount Hdw. Incl.

Order clamps separately.

Warranty

6 Year
