Yaesu FT-3185R

Radio Includes:

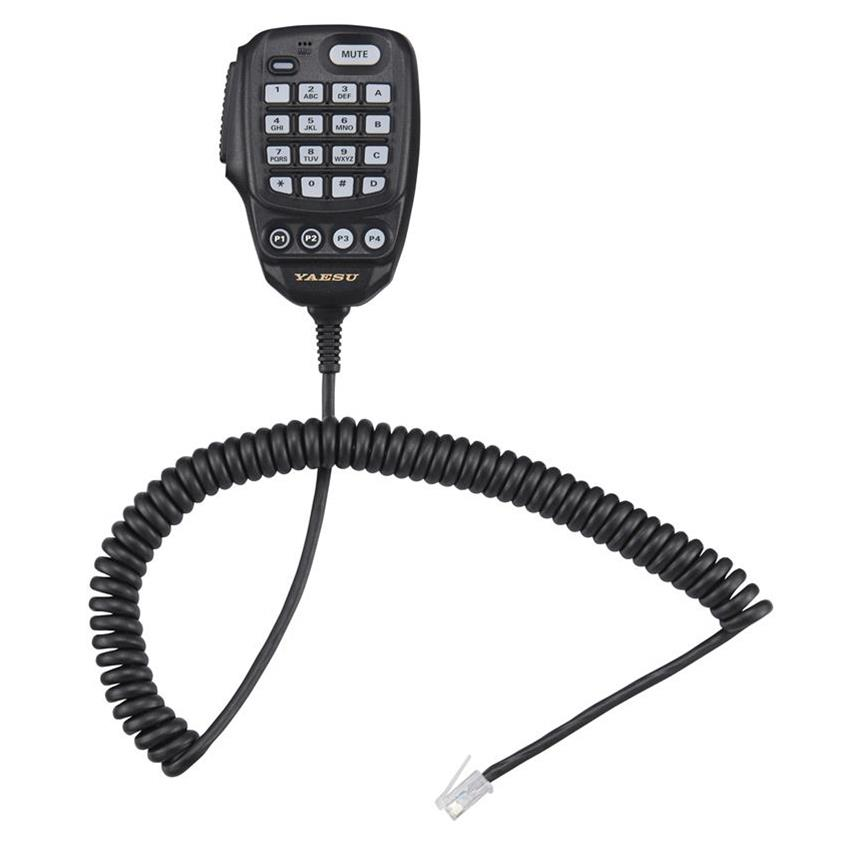

• SSM-85D DTMF Keypad Microphone

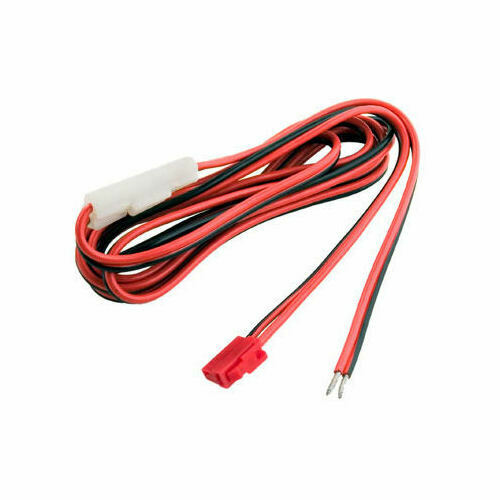

• DC Power Cable w/Fuse

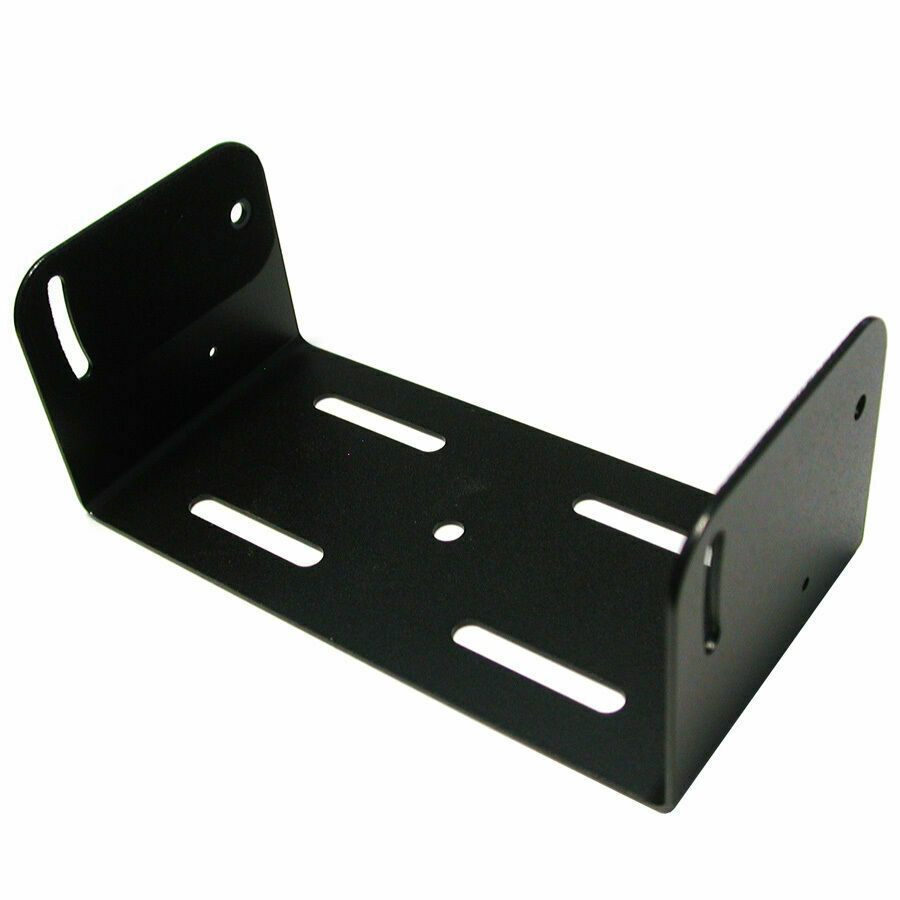

• MMB-83 Mounting Bracket
• Spare Fuse 25A
• Necessary Hardware
• 3 Year Manufacturers Warranty

Items needed:
antenna designed for your particular operating frequency plus mount and cable terminated with a PL-259 connector.

85W FM Mobile Transceiver

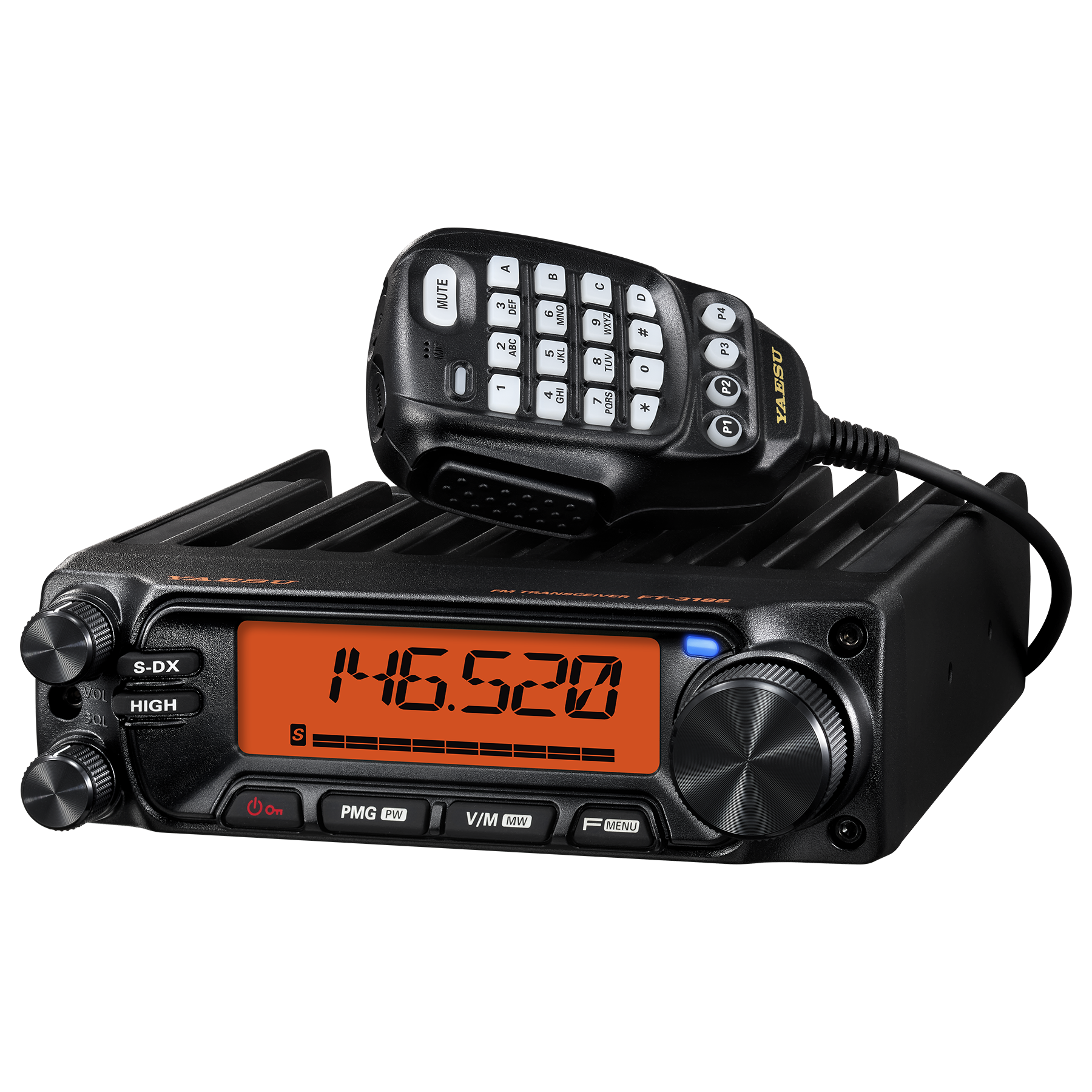

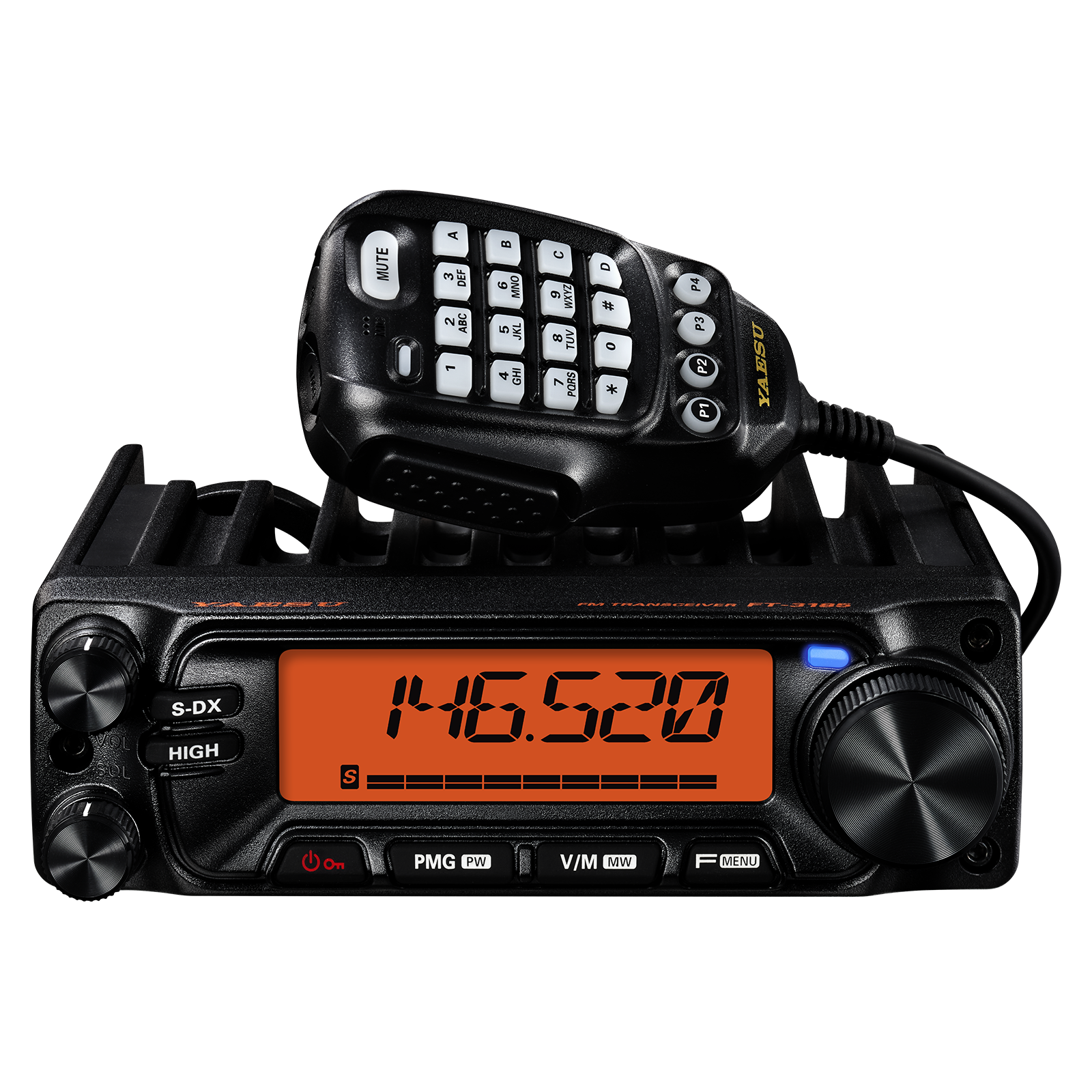

Yaesu FT-3185R VHF FM Mobile Transceivers are powerful mobile transceivers designed for the 2-meter amateur band, offering up to 85W of power with additional selectable power settings of 50W, 20W or 5W. Its massive heatsink, which operates without a cooling fan, ensures consistent RF power output. Essential features include CTCSS/DCS encode/decode, Automatic Power-Off (APO), Time-Out Timer (TOT), and Automatic Repeater Shift (ARS), making the FT-3185R a reliable choice for mobile 2-meter operation.

Additional notable features of the FT-3185R, is Primary Memory Group Activity Monitor (PMG), and Custom Function List (CFL). The Primary Memory Group Activity Monitor (PMG) function can register up to 5 memory channels or VFO receive frequencies simply by pressing and holding the PMG key. Press the key to scan the registered frequencies and when a signal comes in on a channel other than the current channel, the transceiver will automatically receive that signal. The Custom Function List (CFL) can be personalized by registering frequently used functions (up to 9) from the 44 items of the Setup Menu. The functions may then be called up with one touch of the F-Menu key or easily selected with the DIAL knob.

The FT-3185R transceiver offers enhanced audio quality with a built-in speaker delivering 3W of clear audio, specifically tuned for improved sound quality, and includes advanced features like the Super-DX function, which improves audio performance in noisy environments. Installation of the optional SPU-1 Audio Digital Signal Processing Unit (ASP) improves the audio quality of weak signals and expands the communication range (sold separately). Additionally, FT-3185R includes 10 NOAA Weather channels with Weather Alert, providing added functionality for users who rely on receiving current weather updates.

Key Features

- Primary Memory Group Activity Monitor (PMG): Register up to 5 memory channels or VFO receive frequencies simply by pressing and holding the PMG key.

- Custom Function List (CFL): Allows personalization by registering frequently used functions (up to 9) from the 44 items of the Setup Menu.

- Super-DX function: Increases the sensitivity of the RF amplifier when the received signal is weak and expands the communication range.

- Optional (ASP) Audio Signal Processing Unit (SPU-1): When installed, the SPU-1 Digitally processes received audio to remove noise, enhancing voice clarity and making weak signals audible. (Sold separately)

- Large-Capacity Memory: 226 Memory channels with Alpha-numeric 6-character labels.

- Optimized Final Power Amplifier Section: Includes a new highly efficient cooling fan, aides in achieving an efficient TX output of 85W.

- Expanded Receiver Coverage: 136-174MHz

- Keypad Entry: Entry of operating frequencies from the supplied DTMF microphone.

- Versatile Scan Features:

Preferential Memory Scan

VFO Scan

Priority Channel Scan (Dual Watch)

- CTCSS/DCS Encode/Decode: Enhanced communication capabilities.

- Separate Transmit Offset Frequency Memories: Improved frequency management.

- RF Squelch: Reduces unwanted noise.

- EPCS (Enhanced Paging & Code Squelch) Operation: Advanced paging and code squelch functionality.

- Display Illumination Adjustment: Customizable display brightness.

- Automatic Power-Off (APO): Energy-saving feature.

- Time-Out Timer (TOT): Prevents prolonged transmissions.

- Busy Channel Lock-Out (BCLO): Avoids interference with active channels.

- NOAA Weather Broadcast Channels: 10 channels with Weather Alert for timely updates.

Specifications:

General

Frequency Range: TX 144-148MHz, RX 136-174MHz

Channel Step: 5/6.25/10/12.5/15/20/25/50/100kHz

Standard Repeater Shift: ±600kHz

Frequency Stability: ±5 ppm [-4°F to +140°F (-20°C to +60°C)]

Modes of Emission: F2D, F3E

Antenna Impedance: 50-Ohm, unbalanced

Supply Voltage: 13.8VDC ±15%, negative ground

- Current Consumption (typical)

Rx: less than 0.7A, less than 0.5A (squelched)

Tx: 15A (85W), 11A (50W), 7A (20W), 3A (5W)

- Operating Temperature Range: -4°F to +140°F (-20°C to +60°C)

- Case Size (WxHxD): 6.30 x 1.97 x 7.28in. (160 x 50 x 185 mm) (w/o knobs)

- Weight (Approx.): 4.19lbs. (1.9kg)

Transmitter

Output Power: 85/50/20/5W

Modulation Type: Variable Reactance

Maximum Deviation: ±5kHz (Wide)

±2.5kHz (Narrow)

Spurious Radiation: Better than -60dB

Microphone Impedance: 2k-Ohm

Receiver

Circuit Type: Double Conversion Superheterodyne

Ifs: 1st 21.7MHz, 2nd 450kHz

Selectivity (–60dB): 30kHz

Maximum AF Output: 3W into 8ohms @10% THD
