Description
Description
* Element not included
Manufacturer
Bird Technologies Group
Model #
43

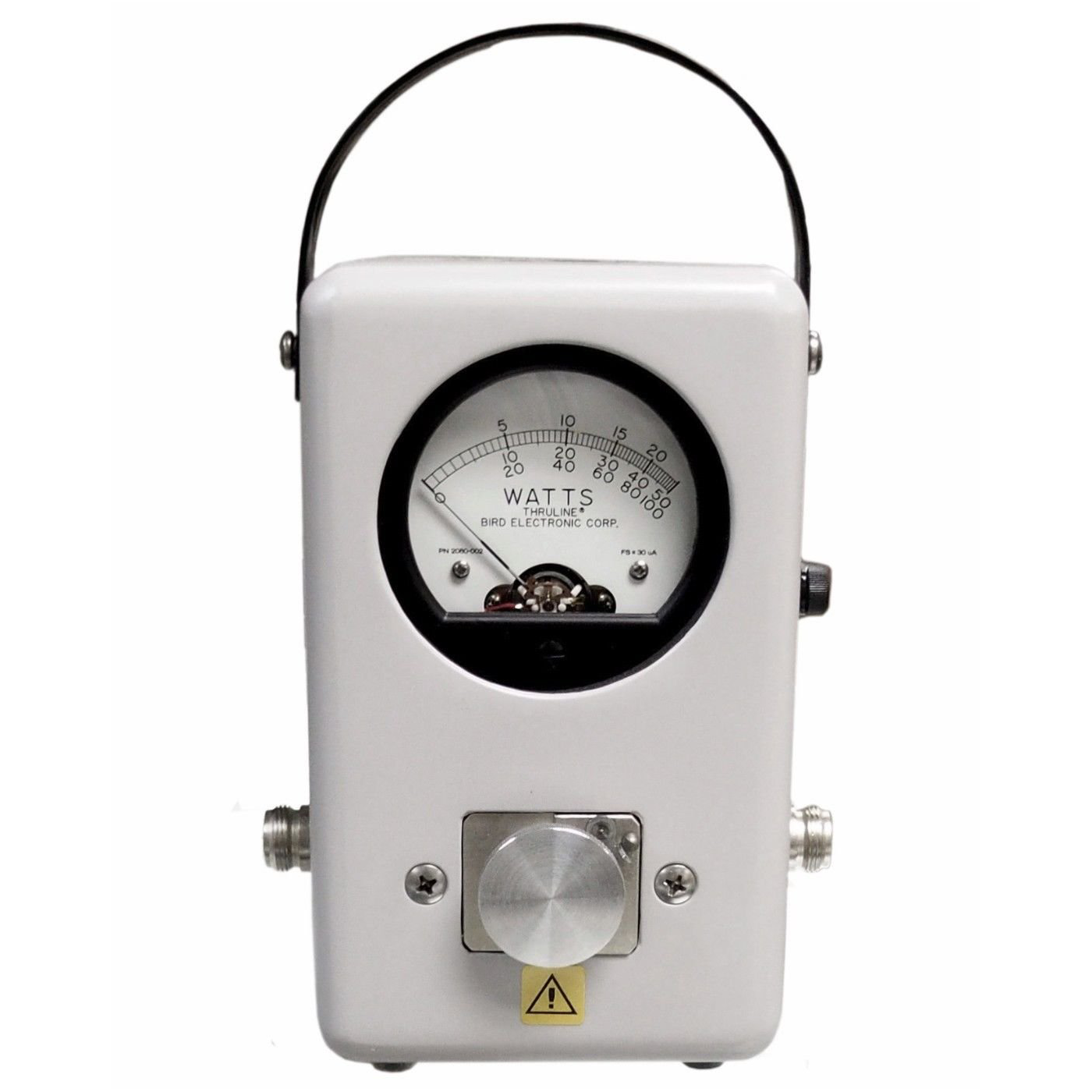

Product Description
Power/SWR Meter
Bird THRULINE instruments can be left in line for continuous monitoring of either transmitter or reflected power. The frequency range (0.45 - 2700 MHz) and power range (100 mW - 10 KW) are determined by plug in elements sold separately. Includes a 30-microampere meter with scales of 25, 50, and 100 unit calibrations to permit full-scale direct power reading. Peak reading models read true peak power output in CW, SSB, AM and FM modes at ± 5% of full-scale accuracy.
Power Range
100 mW to 10 kW using Bird® Plug-in Elements
Frequency Range
450 kHz - 2.7 GHz (depending on element)
Accuracy
± 5% of full scale
Insertion VWSR
with N Connectors 1.05 max. to 1000 MHz
Connectors
Choose Connectors Above
Finish
Gray Powder Coat
Dimensions
6-7/8" x 5-1/8" x 3-5/8", including connectors (H x W x D)
175 x 130 x 92 mm
175 x 130 x 92 mm
Weight
3 lbs. (1.4 kg)
Warranty
1 Year
