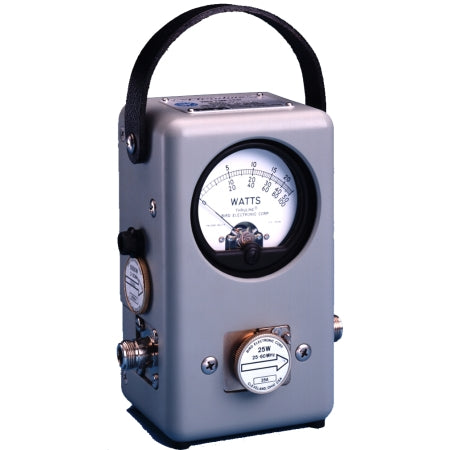

Bird 43P

Bird Technologies Group

43P

Power/SWR Meter

General Purpose Wattmeter with Peak Reading Option
The Industry Standard - Bird's Famous General Purpose Wattmeter with Peak Power Retrofit Kit 4300-400
The 43P is a Model 43 Wattmeter with a Peak Reading Kit installed that allows true peak power output at ± 8% of full scale, QC (quick change) type connectors and a full range of plug-in elements provide a wide choice of frequency ranges and power levels giving the 43P amazing flexibility. Two extra elements can be stored in the housing, one on each side.

The 43P is easy to use and simple to service in the field.

100 mW to 10 kW using Bird® Plug-in Elements

450 kHz - 2.7 GHz (depending on element)

CW Mode: ± 5% full scale, Peak mode: ± 8% full scale

Normal voice audio; or (Peak Mode) Rectangular Pulses Duty cycle: 2% (min)
Repetition rate: 100 pps (min), Pulse width: 200 µs (min)

with N Connectors 1.05 max. to 1000 MHz

N Female

Gray Powder Coat

6-7/8" x 5-1/8" x 3-5/8", including connectors (H x W x D)
175 x 130 x 92 mm

lbs. (1.4 kg)

1 Year
