Description
Description
Manufacturer
Bird Technologies Group
Model #
4304A
Product Description

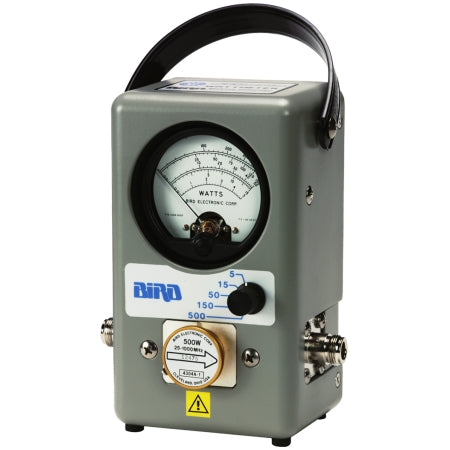

Power/SWR MeterBird THRULINE instruments can be left in the line for continuous monitoring. Allows readings from 25-1000 MHz at five power range settings of 5, 15, 50, 150, and 500 Watts (power limited to 150 Watts from 800-1000 MHz). A single directional element is included that covers the full bandwidth. No other elements are needed.
Power Range
150-500 Watts
Frequency Range
25-1000 MHz
Accuracy
25-100 MHz, ± 7% of full scale, using correction charts.
100-512 MHz, ± 6 of full scale, no correction needed.
512-1000 MHz, ± 7% of full scale, no correction needed.
100-512 MHz, ± 6 of full scale, no correction needed.
512-1000 MHz, ± 7% of full scale, no correction needed.
Insertion VWSR
25-521 MHz, 1.05 max, 512-1000 MHz, 1.07 max
Connectors
N Female
Finish
Gray Powder Coat
Dimensions
6-7/8" x 5-1/8" x 3-5/8", including connectors (H x W x D)
175 x 130 x 92 mm
175 x 130 x 92 mm
Weight
3 lbs. (1.4 kg)
Warranty
1 Year
