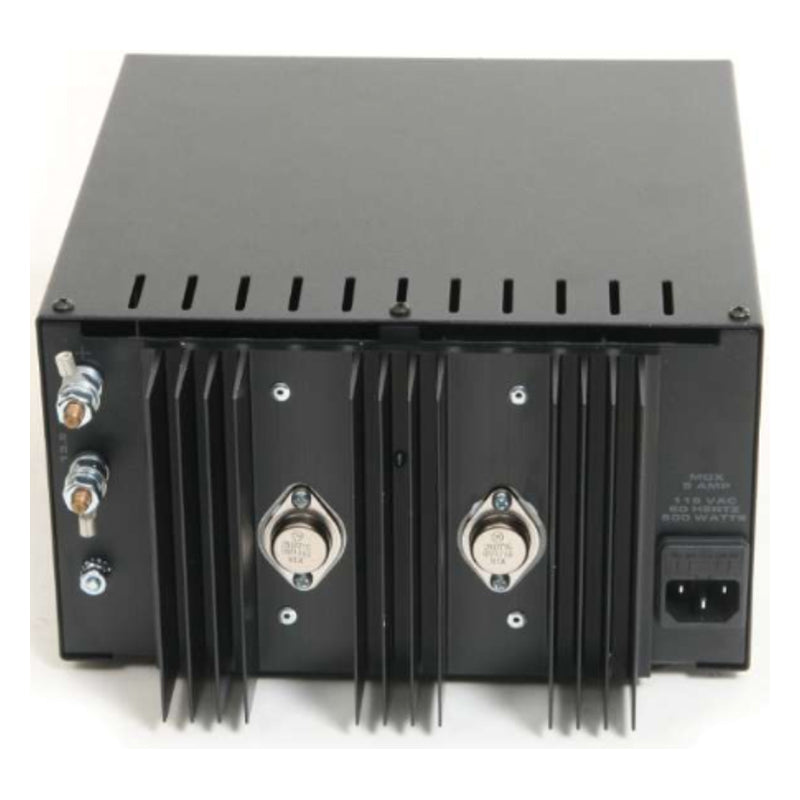

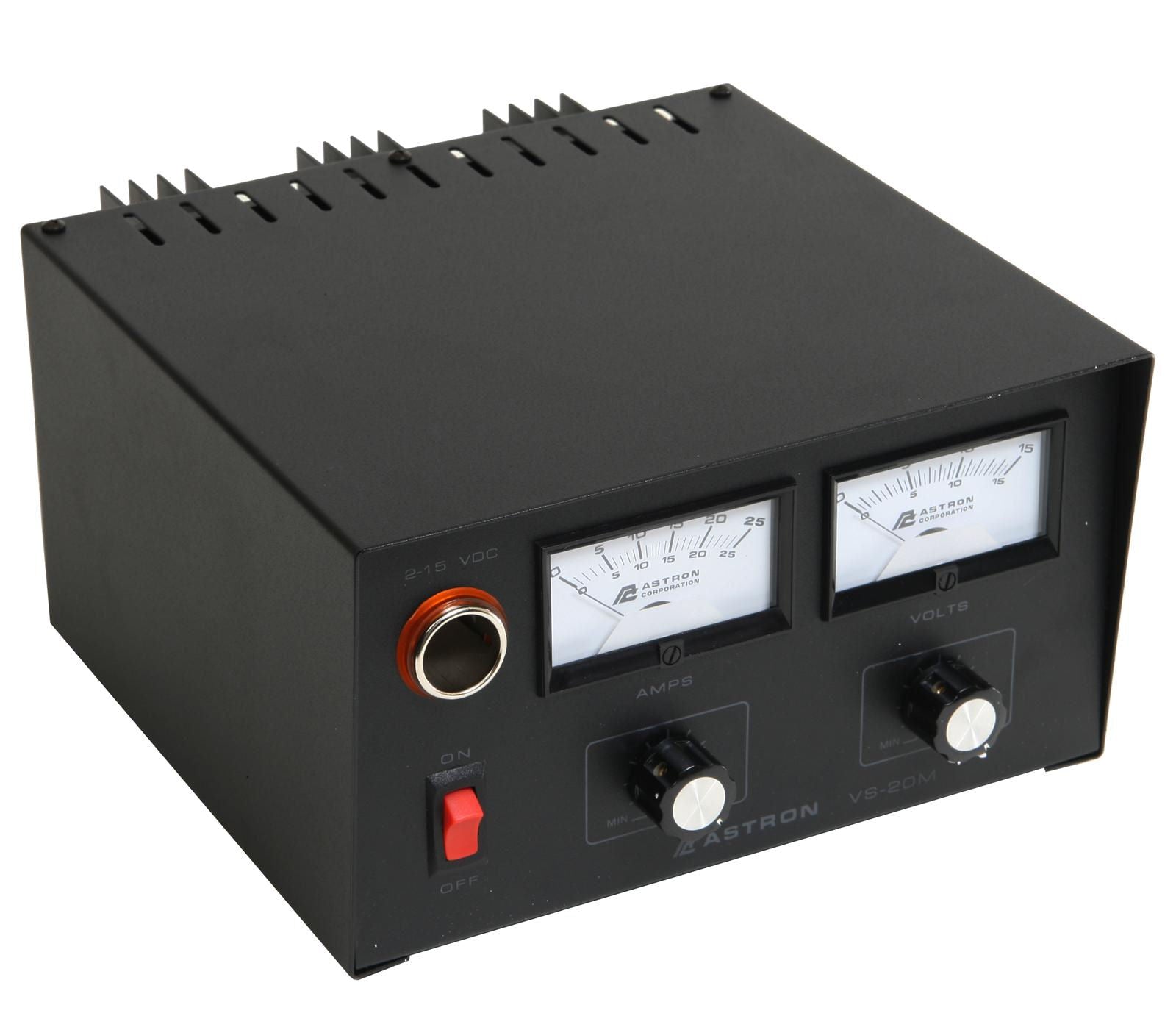

Description
Description
Manufacturer
Astron
Model #
VS-20M
Product Description
20 Amp Variable Amp/Voltage Power Supply
Input Voltage (VAC)
115 Volts AC
Output Voltage (VDC)
2 to 15 Volts DC (Selectable)
Amperage (Cont.)
16
Amperage (Intermittent)
20
Description
Solid State electronically regulated. Feature fold-back current limiting to protect the power supply from excessive current or shorted output.
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Features include:
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Features include:
- Precision regulation adjustable from 2 to 15 Volts DC
- Adjustable Amperage current 1.5 to 20 amps
- Separate lighted voltage and current meters
- Short circuit and over-voltage protection
- Low peak to peak ripple of less than 5 mv
- High surge capacity
- Fold-back current limiting
- Grounded power cord
- External fuse access
Ripple Voltage
5 mV
Fold-Back Protection
Yes
Crowbar Protection
Yes
Dimensions (Width x Height x
Depth) inches
9 x 5 x 10.5
Product Narrative
Astron linear power supplies are heavy duty and solid state electronically regulated.
Warranty
1 yr
