Description
Description
Manufacturer
Astron
Model #
VS-70M
Product Description

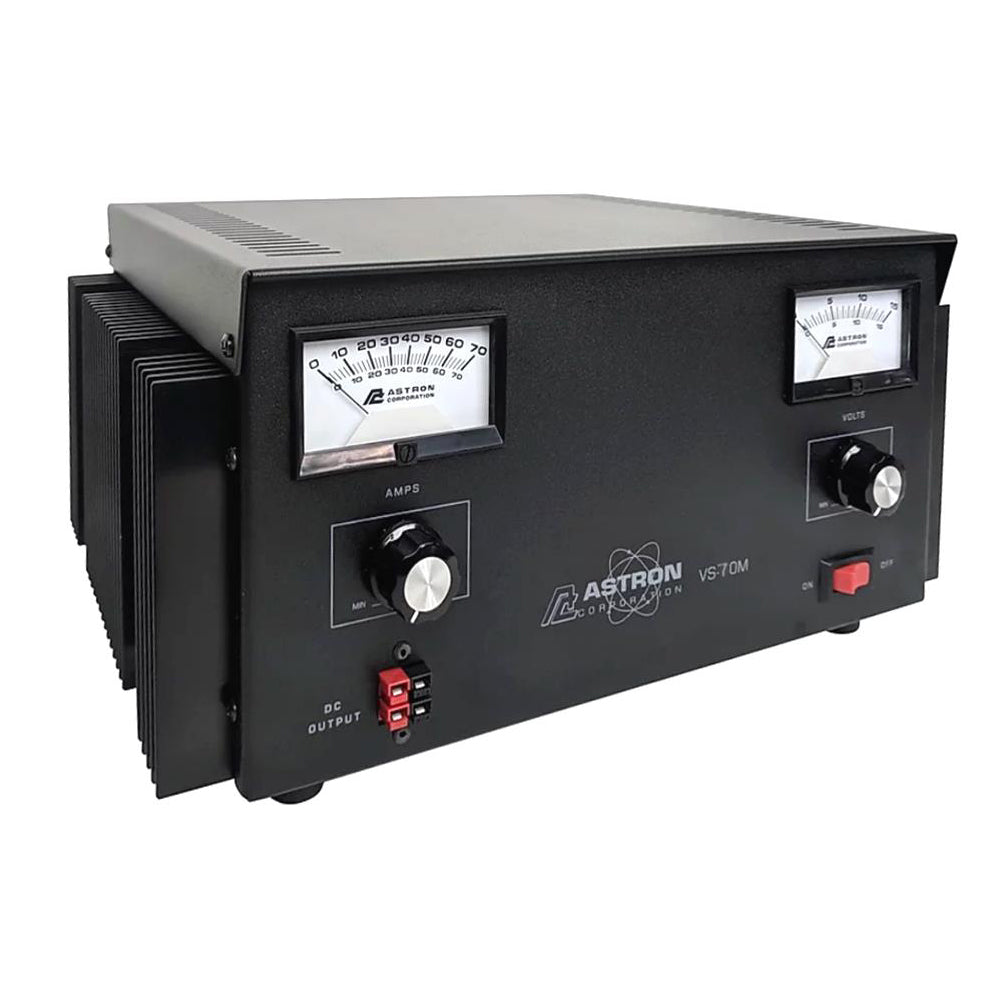

70 Amp Variable Amp/Voltage Power Supply with Anderson Power Pole Connection
Input Voltage (VAC)
115 Volts AC
Output Voltage (VDC)
2 to 15 Volts DC (Selectable)
Amperage (Cont.)
57
Amperage (Intermittent)
70
Description
Solid State electronically regulated. Feature fold-back current limiting to protect the power supply from excessive current or shorted output.
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Features include:
- Precision regulation adjustable from 2 to 15 Volts DC
- Adjustable Amperage current 1.5 to 70 amps
- Separate lighted voltage and current meters
- Short circuit and over-voltage protection
- Low peak to peak ripple of less than 5 mv
- High surge capacity
- Fold-back current limiting
- Grounded power cord
- External fuse access
Ripple Voltage
5 mV
Fold-Back Protection
Yes
Crowbar Protection
Yes
Dimensions (Width x Height x
Depth) inches
13.75 x 6 x 12.125
Product Narrative
Astron linear power supplies are heavy duty and solid state electronically regulated.
Warranty
1 yr
