Description
Description
Manufacturer
TE Connectivity
Model #
PLC456 Series
Product Description

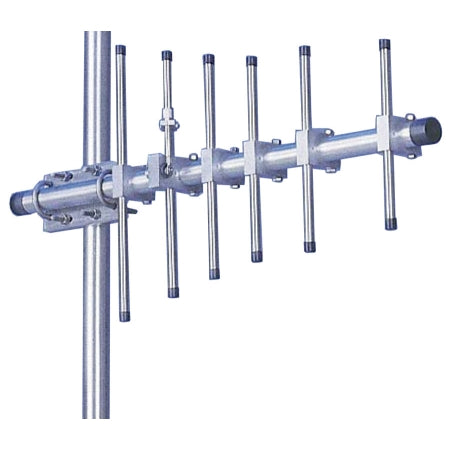

450-470 MHz 7.5 dB Yagi
Product Narrative
6 element, 7.5 dB gain broadband yagi. Excellent forward gain and front to back ratio with clean patterns for greatest side rejection.
Specific Freq. (MHz)
450-470 MHz
Gain (dB)
7.5
Maximum Input Power (Watts)
250
Bandwidth >1.5 VSWR
20
Vert. Beamwidth (-3dB)
53 Deg.
Direct Termination
UHF Female
Lightning Protection
DC Ground
Overall Length
2.6'
Support Pipe Dia.
2-1/8" max.
Weight
3.67 Lbs.
Wind Load, (sq ft)
0.41
Mount Hdw. Incl.
U-bolts
Rated Wind Velocity (RWV, MPH)
125 MPH
Warranty
5 Year
