Laird TE Connectivity Y4503
Regular price
$26995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Manufacturer
TE Connectivity
Model #
Y4503 Series
Product Description

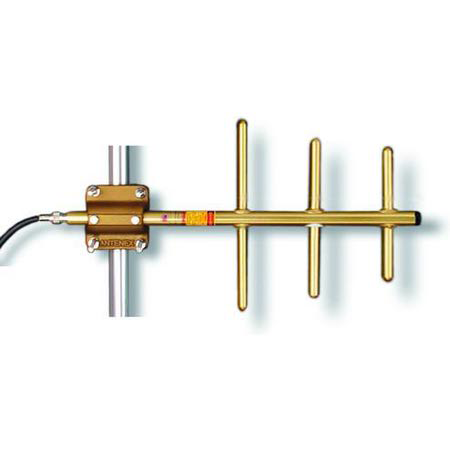

450-470 7.1dB Gold Yagi
Product Narrative
7.1 dB gain 3 element gold anodized yagi antenna. Solid elements are welded to boom for high durability.
Specific Freq. (MHz)
450-470 MHz
Gain (dB)
7.1
Maximum Input Power (Watts)
300
Bandwidth >1.5 VSWR
20
Vert. Beamwidth (-3dB)
57 Deg.
Direct Termination
N Female
Lightning Protection
DC Ground
Overall Length
1.9'
Support Pipe Dia.
1-5/8"
Weight
2 Lbs.
Wind Load, (sq ft)
0.15
Mount Hdw. Incl.
Clamp set
Rated Wind Velocity (RWV, MPH)
100 MPH
Warranty
5 Year
