Laird TE Connectivity Y4505
Regular price
$33995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Manufacturer
TE Connectivity
Model #
Y4505 Series
Product Description
450-470 9.2dB Gold Yagi
Product Narrative

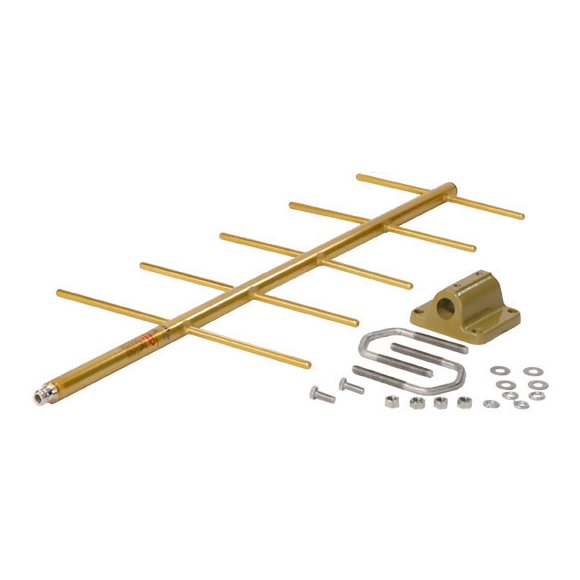

9.2 dB gain 5 element gold anodized yagi antenna. Solid elements are welded to boom for high durability.
Specific Freq. (MHz)
450-470 MHz
Gain (dB)
9.2
Maximum Input Power (Watts)
300
Bandwidth >1.5 VSWR
20
Vert. Beamwidth (-3dB)
57 Deg.
Direct Termination
N Female
Lightning Protection
DC Ground
Overall Length
3.1'
Support Pipe Dia.
2"
Weight
2 Lbs.
Wind Load, (sq ft)
0.23
Mount Hdw. Incl.
Clamp set
Rated Wind Velocity (RWV, MPH)
100 MPH
Warranty
5 Year
