Manufacturer
TE Connectivity
Product Description

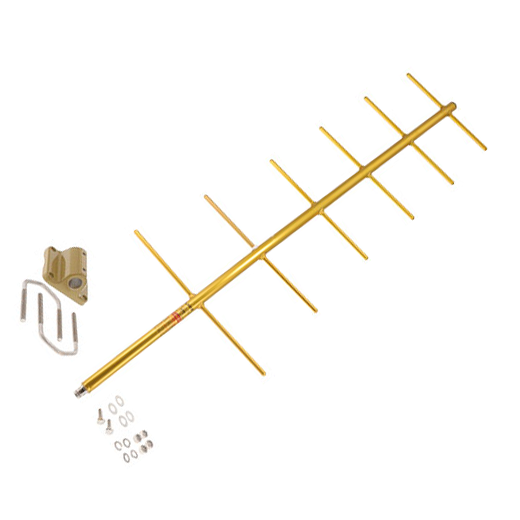

450-470 MHz 10.2dB Gold Yagi
Product Narrative
10.2 dB gain 6 element gold anodized yagi antenna. Solid elements are welded to boom for high durability.
Gain (dB)
10.2
Maximum Input Power (Watts)
300
Bandwidth >1.5 VSWR
20
Vert. Beamwidth (-3dB)
57 Deg.
Direct Termination
N Female
Lightning Protection
DC Ground
Overall Length
3.66'
Support Pipe Dia.
2"
Weight
3 Lbs.
Wind Load, (sq ft)
0.29
Mount Hdw. Incl.
Mounting Clamps
Rated Wind Velocity (RWV, MPH)
100 MPH
Warranty
5 Year
