Description
Description
Manufacturer
Telewave, Inc.
Model #
ANT450D

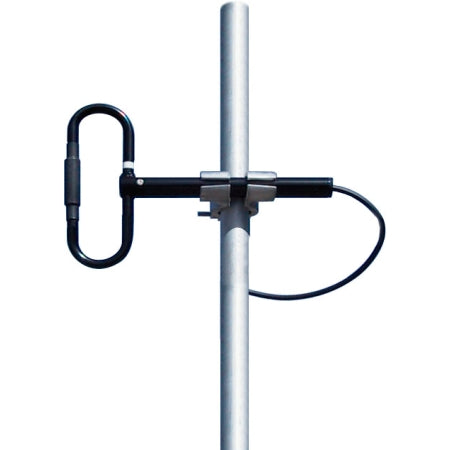

Product Description
406-512 MHz Single Dipole
Product Narrative
Single folded dipole antenna, Txylan coated. 1-2.5 dBd gain. Horizontal pattern is adjustable by changing the dipole to mast spacing. Support mast not included
Specific Freq. (MHz)
406-512 MHz
Gain (dB)
1-2.5
Maximum Input Power (Watts)
500
Bandwidth >1.5 VSWR
106
Vert. Beamwidth (-3dB)
71 Deg.
Lightning Protection
DC Ground
Direct Termination
Jumper w/ N Male
Overall Length
13"
Support Pipe Dia.
1.5" O.D. Sch. 40 pipe
Wind Load, (sq ft)
0.27 @ 100 MPH
Rated Wind Velocity (MPH)
175 MPH
Weight (lb)
6 Lbs.
Mount Hdw. Incl.
Clamp set
Mfg. Warranty
5 Years
