Description
Description
Manufacturer
Telewave, Inc.
Model #
ANT450D6-9
Product Description

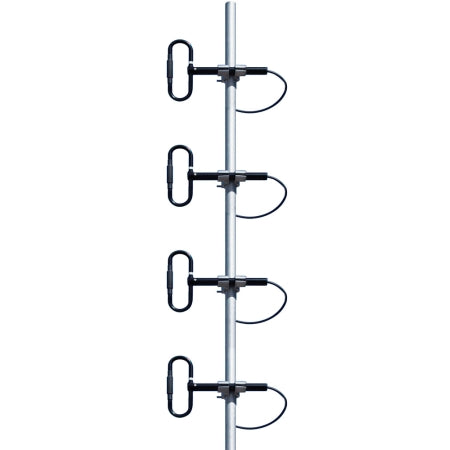

406-512 MHz 4-Bay Dipole
Product Narrative
4 bay folded dipole array, Txylan coated. Extremely wide 106 MHz bandwidth. 6 or 9 dB gain. Field adjustable pattern offset, offset circular, or bi-directional. Optional electrical or mechanical downtilt 1-15 deg. Support mast not included
Specific Freq. (MHz)
406-512 MHz
Gain (dB)
6-9
Maximum Input Power (Watts)
500
Bandwidth >1.5 VSWR
106
Horizontal Beamwidth (Deg)
224
Lightning Protection
DC Ground
Direct Termination
Harness with N Male
Overall Length
71"
Support Pipe Dia.
1.5" O.D. Sch. 40 pipe
Vertical Beamwidth (Deg)
15 Deg.
Wind Load, (sq ft)
1.4
Rated Wind Velocity (MPH)
175 MPH
Weight (lb)
18 Lbs.
Mount Hdw. Incl.
Clamp set for each elementn for 1.5" - 2.5" O.D. pipe
Mfg. Warranty
5 Years
