Description
Description

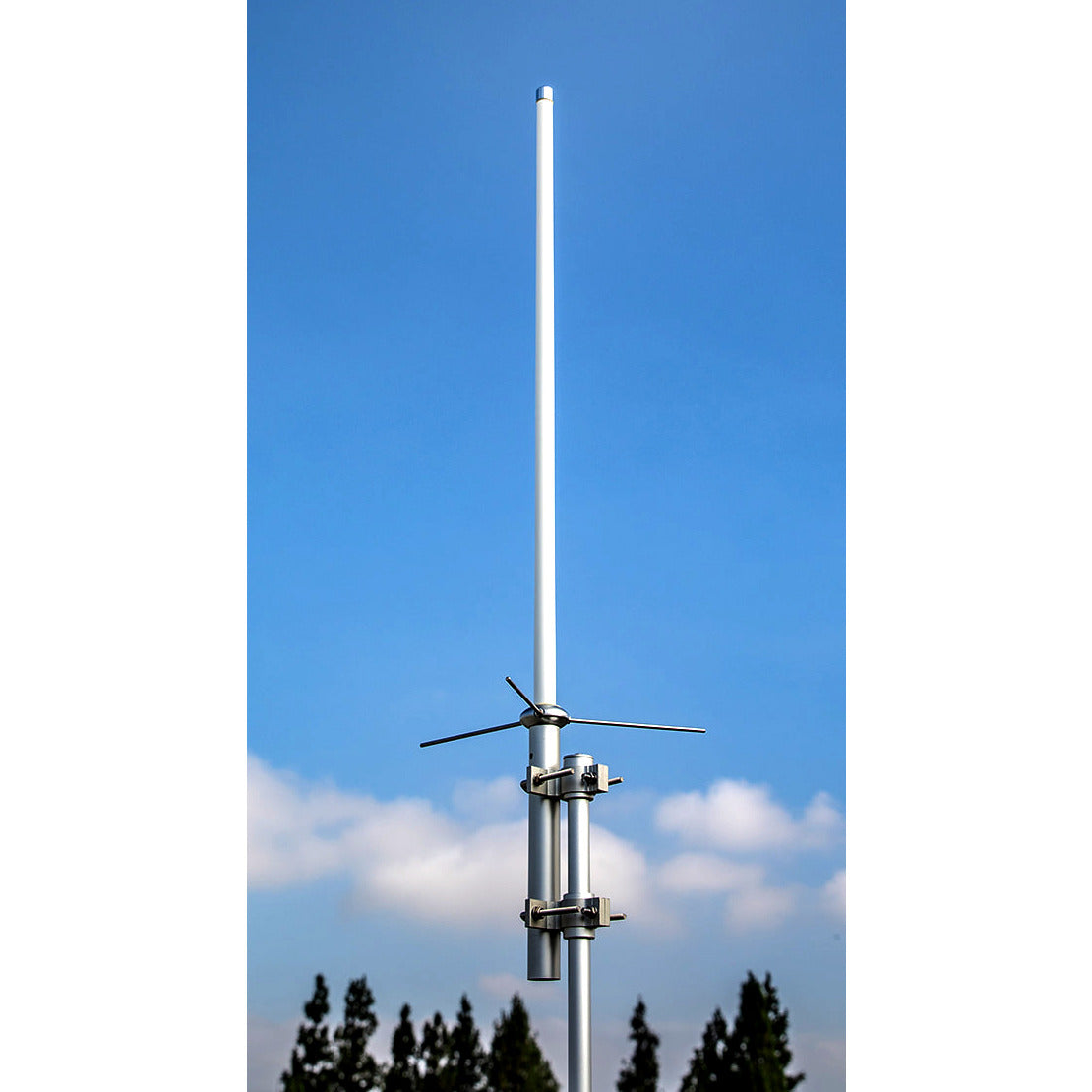

Very compact 2M/440 base antenna, easily hidden.
Perfect for outdoors, attic or closet installations.
Mount pipe acts as shroud to protect the antenna/coax conection from the elements. Unique "split-thread" lock bolt is supplied to attach the antenna to the mount pipe, the threads compress when installed to keep the bolt from backing out.
Manufacturer
NCG Comet
Model #
GP-1
Product Narrative
DualBand 144/440MHz
Specific Freq. (MHz)
144-148 / 440-450MHz
Gain (dB)
Gain: 146MHz 3.0dBi
446MHz 6.0dBi
Maximum Input Power (Watts)
200 watts
Bandwidth >1.5 VSWR
4/10 MHz
Direct Termination
SO-239
Overall Length
4' 2"
Rated Wind Velocity (MPH)
125 MPH
Mount Hdw. Incl.
Yes
Weight
2 lbs.
Warranty
1 Year
