Description
Description
Manufacturer
NCG Comet
Model #
CFX-5140
Product Description

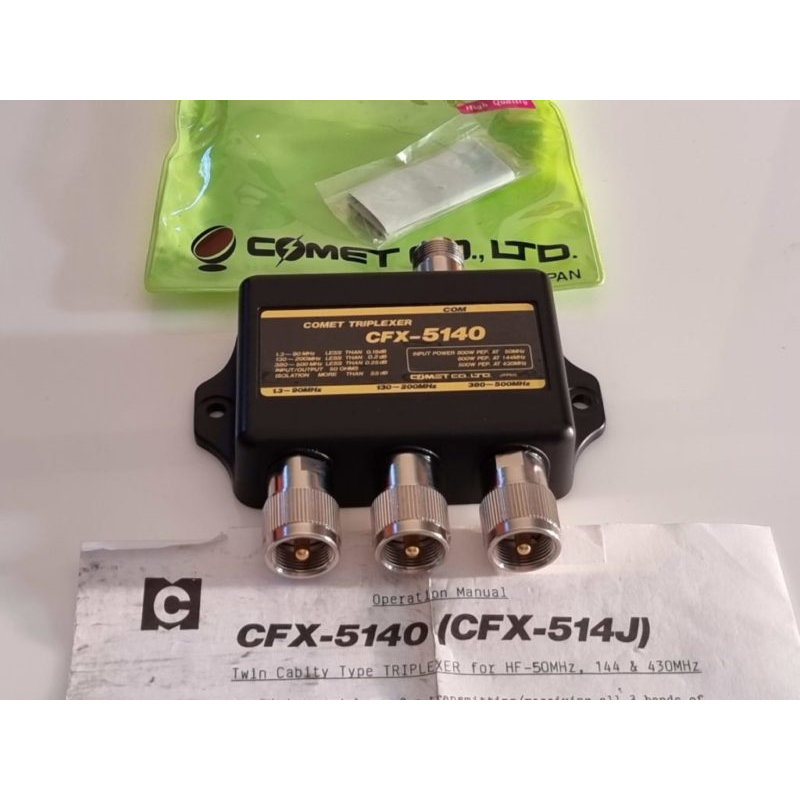

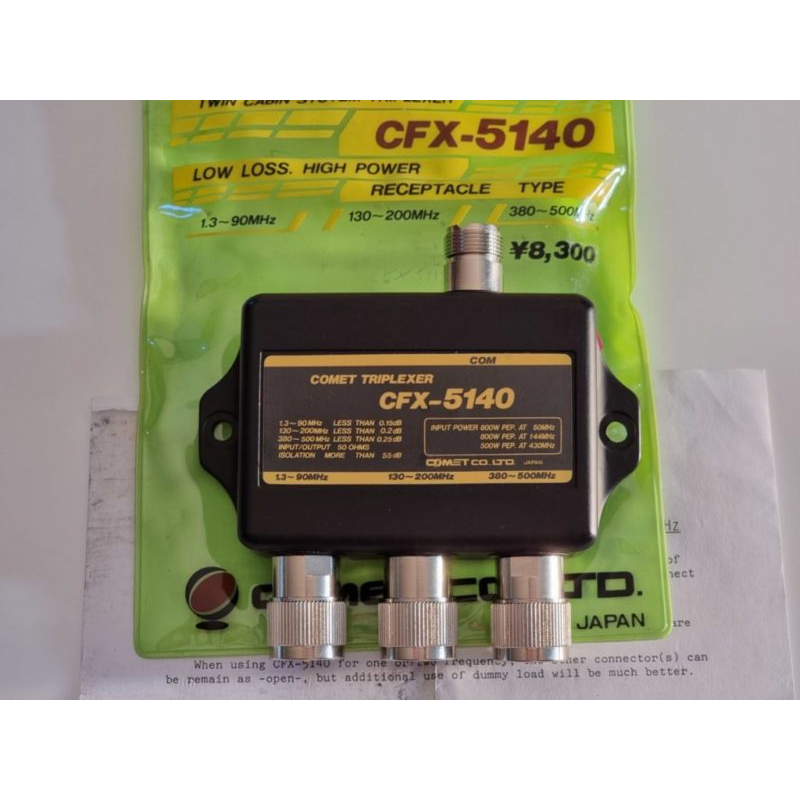

Triplexer
Band Pass
1.3-90MHz
130-200MHz
380-500MHz
Insertion Loss
0.2dB
0.25dB
0.3dB
Maximum Power (Watts)
1.3-90MHz 800w PEP
130-200MHz 800w PEP
380-500MHz 500w PEP
Isolation
55dB
Connectors:
Low In: PL-259
Mid In: PL-259
High In: PL-259
Output: SO-239
Warranty
1 Year
