Description
Description
Manufacturer
TE Connectivity
Model #
PLC2206
Product Description

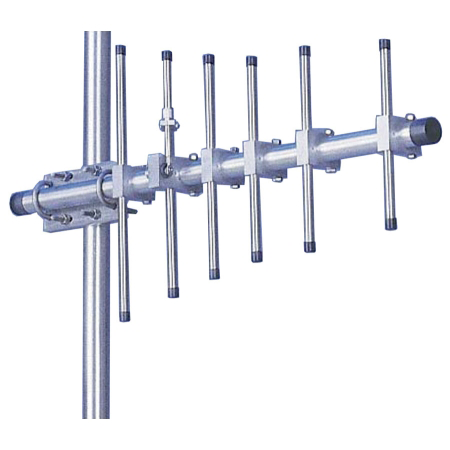

220-222 MHz 7.1 dB Yagi
Product Narrative
Heavy duty, 6 element, end mounted yagi. Excellent forward gain and front to back ratio with clean patterns for greatest side rejection. PLC yagis are heavy-duty point-to-point antennas, commonly used in data transmission and control station applications.
Specific Freq. (MHz)
220-222 MHz
Gain (dB)
7.1
Maximum Input Power (Watts)
400
Bandwidth >1.5 VSWR
8
Vert. Beamwidth (-3dB)
35 Deg.
Lightning Prot.
Direct Ground
Direct Termination
UHF Female
Overall Length
4.0'
Support Pipe Dia.
Not Specified
Rated Wind Velocity (MPH)
125 MPH
Wind Load, (sq ft)
0.81
Mount Hdw. Incl.
U-Bolts
Weight
6 Lbs
Warranty
5 Year
