MPN: Y1505
BRAND: Laird TE Connectivity
PRODUCT TYPE: Base Antenna
SKU: 4412

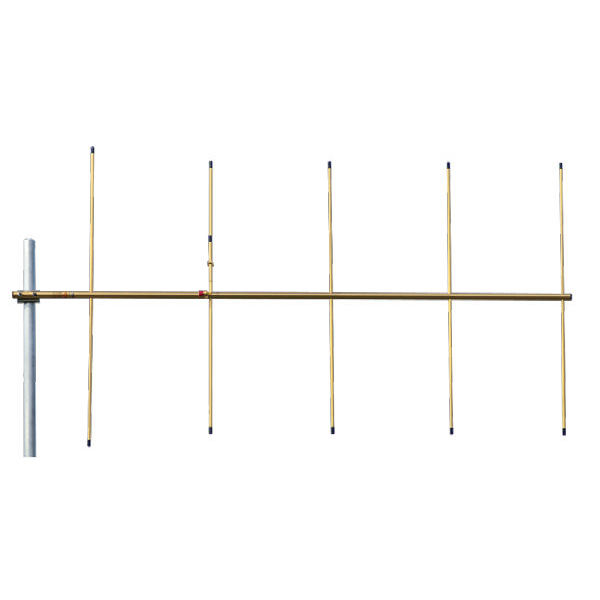

Laird TE Connectivity Y1505

150-174 9.2dB VHF Yagi Antenna. Direct Termination
N Female, Overall Length 5'

$669⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Specs

31679 Y1505 SPEC+SHEET

Description

Manufacturer

TE Connectivity

Model #

Y1505

Product Description

150-174 9.2dB VHF Yagi

Product Narrative

5 element yagi. 9.2 dB directional gain. Gold anodized for longer life, element mount holes are threaded to provide positive RF connection.

Specific Freq. (MHz)

150-174 MHz

Gain (dB)

9.2

Maximum Input Power (Watts)

500

Bandwidth >1.5 VSWR

.7

Vert. Beamwidth (-3dB)

48 Deg.

Lightning Prot.

DC Ground

Direct Termination

N Female

Overall Length

5'

Support Pipe Dia.

2"

Rated Wind Velocity (MPH)

100 MPH

Wind Load, (sq ft)

.71

Mount Hdw. Incl.

Clamp Set

Weight

5 Lbs

Warranty

5 Year
