Description
Description
Manufacturer
TE Connectivity
Model #
YS1503
Product Description

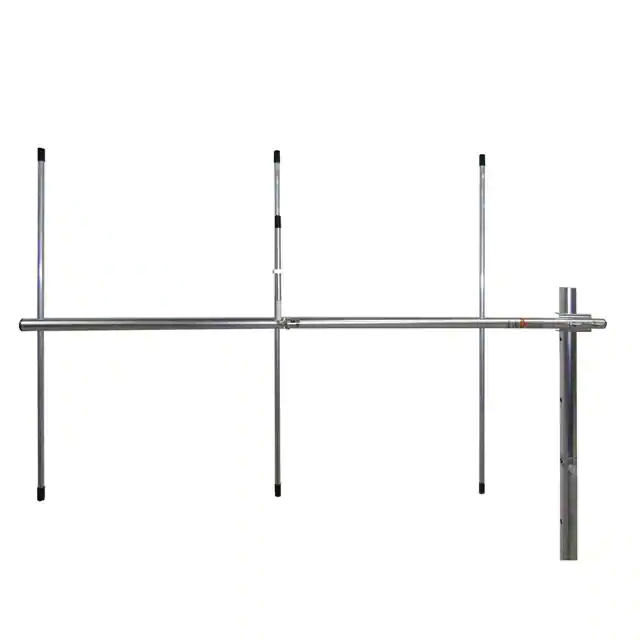

150-174 7.1dB Silver Yagi
Product Narrative
7.1 dB gain 3 element silver series yagi antenna with element mounting holes threaded for positive RF connection.
Specific Freq. (MHz)
150-174 MHz
Gain (dB)
7.1
Maximum Input Power (Watts)
500
Bandwidth >1.5 VSWR
1 MHz
Vert. Beamwidth (-3dB)
57 Deg.
Horizontal Beamwidth (Deg)
90 Deg.
Support Pipe Dia.
2"
Direct Termination
N Female
Overall Length
41.5"
Lightning Protection
DC Ground
Rated Wind Velocity (MPH)
100 MPH
Wind Load, (sq ft)
.36
Mount Hdw. Incl.
U-bolts
Weight
3 Lbs
Warranty
5 Year
