Description
Description
Manufacturer
TE Connectivity
Model #
YS2203
Product Description
220-250 7.1dB Silver Yagi
Product Narrative

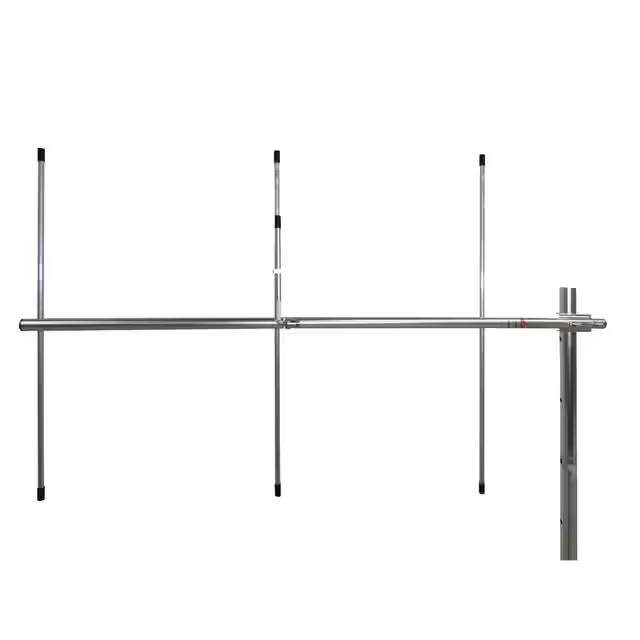

7.1 dB gain 3 element silver series yagi antenna with element mounting holes threaded to provide positive RF connection.
Specific Freq. (MHz)
220-250 MHz
Gain (dB)
7.1
Maximum Input Power (Watts)
500
Bandwidth >1.5 VSWR
30
Vert. Beamwidth (-3dB)
57 Deg.
Lightning Prot.
Direct Ground
Direct Termination
N Female
Overall Length
41.5"
Support Pipe Dia.
2"
Rated Wind Velocity (MPH)
100 MPH
Wind Load, (sq ft)
0.36
Mount Hdw. Incl.
U-Bolts
Weight
3 Lbs
Warranty
5 Year
