Sinclair Technologies SD210-SF2P2SNM
Regular price
$58995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Sinclair
Model #
SD210-SF2P2SNM
Product Description

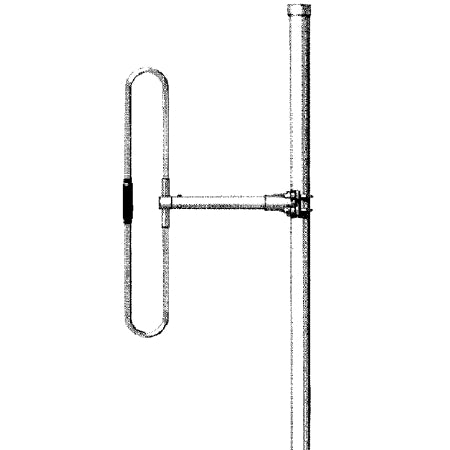

138-174 Exposed Dipole-H
Product Narrative
Single Dipole antenna with 1/4 wave element to mast spacing resulting in bi-directional pattern. Cable harness is inside mast and dipole booms. Extra-wide bandwidth ideal for multicoupled systems.
Specific Freq. (MHz)
138-174 MHz, 1/2 Wave
Gain (dB)
2.5
Maximum Input Power (Watts)
300
Bandwidth >1.5 VSWR
36
Vert. Beamwidth (-3dB)
68 Deg.
Lightning Protection
DC Ground
Direct Termination
Harness with N Male
Overall Length
5'
Support Pipe Dia.
1.9"
Rated Wind Velocity (MPH)
175 MPH
Wind Load, (sq ft)
.90
Weight(lb)
10 Lbs.
Mount Hdw. Incl.
Order clamps separately.
Warranty
6 Year
