Sinclair Technologies SD212-SF2P2SNM
Regular price
$1,29995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Sinclair
Model #
SD212-SF2P2SNM
Product Description

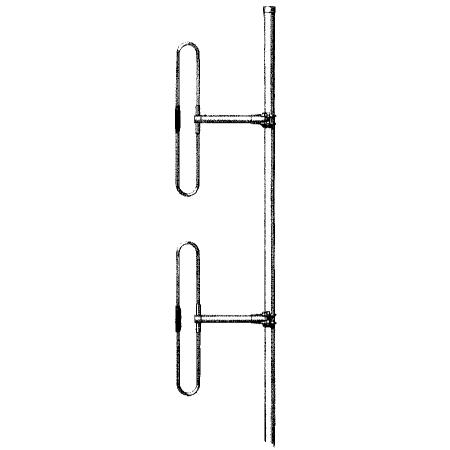

138-174 1/2 wave Dipole
Product Narrative
2 Dipole antenna, 5.0/5.5dBd gain, covers 118-225 MHz in 3 band splits.
Specific Freq. (MHz)
138-174 MHz
Gain (dB)
5.0
Maximum Input Power (Watts)
300
Bandwidth >1.5 VSWR
36
Vert. Beamwidth (-3dB)
34 Deg.
Lightning Protection
DC Ground
Direct Termination
Harness with N Male
Overall Length
10'
Support Pipe Dia.
2.4"
Rated Wind Velocity (MPH)
125 MPH
Wind Load, (sq ft)
Not Specified
Weight(lb)
16 Lbs.
Mounting Hardware
Order clamps separately.
Warranty
6 Year
