MPN: SD212-SF3P2SNM
BRAND: Sinclair Technologies
PRODUCT TYPE: Base Antenna
SKU: 4436

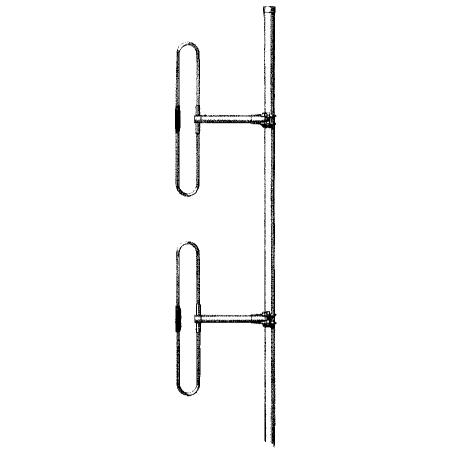

Sinclair Technologies SD212-SF3P2SNM

216-225 MHz Dipole 1/2 wave. Gain (dB) 5.0, Direct Termination Harness with N Male, Overall Length 10'

$1,299⁹⁵

Shipping calculated at checkout.

Ships Separately: this item requires its own package

Freight: this item requires LTL shipping

DOCUMENTS

Specs

SD212 SF3P2SNM(D00) SPEC SHEET

Description

Manufacturer

Sinclair

Model #

SD212-SF3P2SNM

Product Description

216-225 Dipole 1/2 wave

Product Narrative

2-Bay exposed dipole antenna designed for applications where moderate gain is required. These premium-quality antennas are well suited to public safety/public security applications.

Specific Frequency

216-225 MHz

Gain (dB)

5.0

Maximum Input Power (Watts)

300

Bandwidth >1.5 VSWR

36

Vert. Beamwidth (-3dB)

34 Deg.

Lightning Prot.

DC Ground

Direct Termination

Harness with N Male

Overall Length

10'

Support Pipe Dia.

2.4"

Rated Wind Velocity (MPH)

155 MPH

Wind Load, (sq ft)

Not Specified

Mounting Hardware

Order clamps separately.

Weight

16 Lbs.

Warranty

6 Years
