MPN: SD214-SF2P2SNM
BRAND: Sinclair Technologies
PRODUCT TYPE: Base Antenna
SKU: 4438

Sinclair Technologies SD214-SF2P2SNM

138-174 MHz Quad 1/2 wave antenna. Direct Termination
Harness with N Male, Overall Length 20'

$1,999⁹⁵

Shipping calculated at checkout.

Freight: this item requires LTL shipping

DOCUMENTS

Specs

SD214 SF2P2SNM(D00B ABK) SPEC SHEET

Description

Manufacturer

Sinclair

Model #

SD214-SF2P2SNM

Product Description

138-174 Quad 1/2 wave ant

Product Narrative

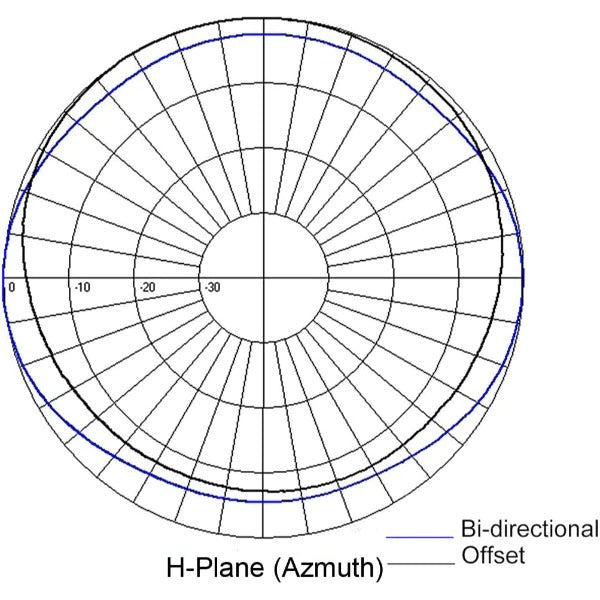

Four dipole array with 1/2 wave element mast spacing creating a bi-directional pattern. Cable harness is inside the mast and dipole booms.

Specific Freq. (MHz)

138-174 MHz

Gain (dB)

8

Maximum Input Power (Watts)

300

Bandwidth >1.5 VSWR

36

Vert. Beamwidth (-3dB)

17 Deg.

Lightning Protection

DC Ground

Direct Termination

Harness with N Male

Overall Length

20'

Support Pipe Dia.

2.4"

Rated Wind Velocity (MPH)

130 MPH

Wind Load, (sq ft)

4.5

Weight

45.5 Lbs.

Mounting Hardware

Order clamps separately

Mfg.Warranty

6 Year
