Sinclair Technologies SY203-SF5SNME-ABK

Sinclair

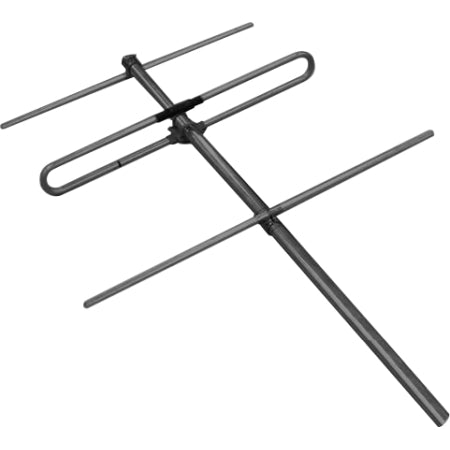

157-164 MHz 5.5 dBd 3 Element Yagi Antenna. Rugged 3-element yagi antenna, black anodized, with extended boom for end mount. All elements on this antenna are attached to the boom with solid cast aluminum clamps.

Specific Frequency 157-164 MHz

Gain 7.6 dBi

Gain 5.5 dBd

Vertical Beamwidth 61 deg

Maximum VSWR 1.5:1

RF Connector N Male

Type of Hardware Included Clamp001

Horizontal Beamwidth 87 deg

Item Length 75.3 in

Item Height 42 in

Item Width 6.5 in

Item Weight 5.5 lb

Connector Placement Pigtail

Maximum Rated Wind Velocity 135 mile/h

Jumper Included Yes

Lightning Protection DC Ground

Polarization Linear

Maximum Power 200 W

3 Years
