Sinclair Technologies SY206-SF11SNM
Regular price
$73349
Unit price
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Sinclair
Model #
SY206-SF11SNM
Product Description

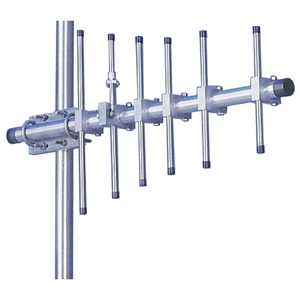

217-225 MHz 9.5 dB Yagi
Product Narrative
Six element yagi of outstanding durability and performance. All elements on this antenna are attached to the boom with solid cast aluminum clamps.
Specific Freq. (MHz)
217-225 MHz
Gain (dB)
9.5
Maximum Input Power (Watts)
250
Bandwidth >1.5 VSWR
8
Vert. Beamwidth (-3dB)
44 Deg.
Lightning Prot.
DC Ground
Direct Termination
N Male
Overall Length
63"
Support Pipe Dia.
Not Specified
Rated Wind Velocity (MPH)
85
Wind Load, (sq ft)
1.92
Mount Hardware Included
Clamp #1
Weight
12.5 Lbs.
Warranty
6 Years
