Description
Description
Manufacturer
Telewave, Inc.
Model #
ANT150D
Product Description
138-174 MHz Single Dipole
Product Narrative

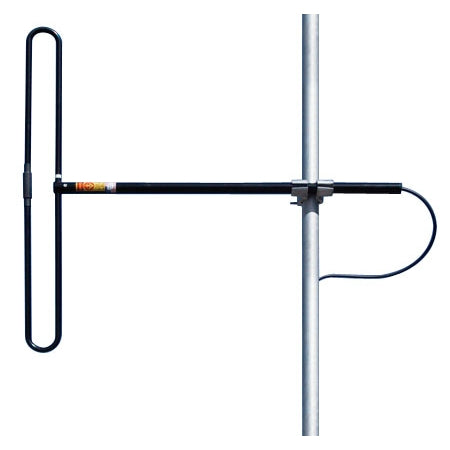

Single folded dipole antenna. Offset pattern is adjustable by changing the dipole to mast spacing. Support mast not included.
Specific Freq. (MHz)
138-174 MHz
Gain (dB)
1 - 2.5
Maximum Input Power (Watts)
500
Bandwidth >1.5 VSWR
36
Vert. Beamwidth (-3dB)
78 Deg.
Lightning Protection
DC Ground
Direct Termination
None
Overall Length
36"
Support Pipe Dia.
1.5" O.D. minimum Schd. 40 pipe (not included)
Wind Load, (sq ft)
0.73
Rated Wind Velocity (MPH)
175 MPH
Weight
5.5 Lbs.
Mount Hdw. Incl.
Clamp set for 1.5-2.5" OD legs
Warranty
5 Years
