Description
Description
Manufacturer
Telewave, Inc.
Model #
ANT220D
Product Description

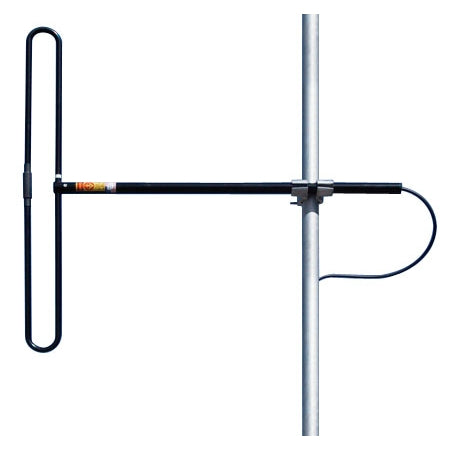

216–252 MHz exposed dipole antenna. Adjustable pattern, Unity offset gain, 500 W. Includes cable harness with N Male termination. Mast not included.
Specific Freq. (MHz)
216-252 MHz
Gain (dB)
1-2.5
Maximum Input Power (Watts)
500
Bandwidth >1.5 VSWR
36
Vert. Beamwidth (-3dB)
90 Deg.
Lightning Prot.
DC Ground
Direct Termination
Includes cable harness with N Male termination
Overall Length
23" x 24"
Support Pipe Dia.
1.5" Sch. 40 pipe
Rated Wind Velocity (MPH)
175
Wind Load, (sq ft)
0.51
Weight (lb)
8 Lbs
Mount Hdw. Incl.
Custom clamp set for 1.5"-2.5" OD pipe
Warranty
5 Years
