Description
Description
Manufacturer
Telewave, Inc.
Model #
ANT220D6-9
Product Description
216-252 MHz Dipole Ant.
Product Narrative

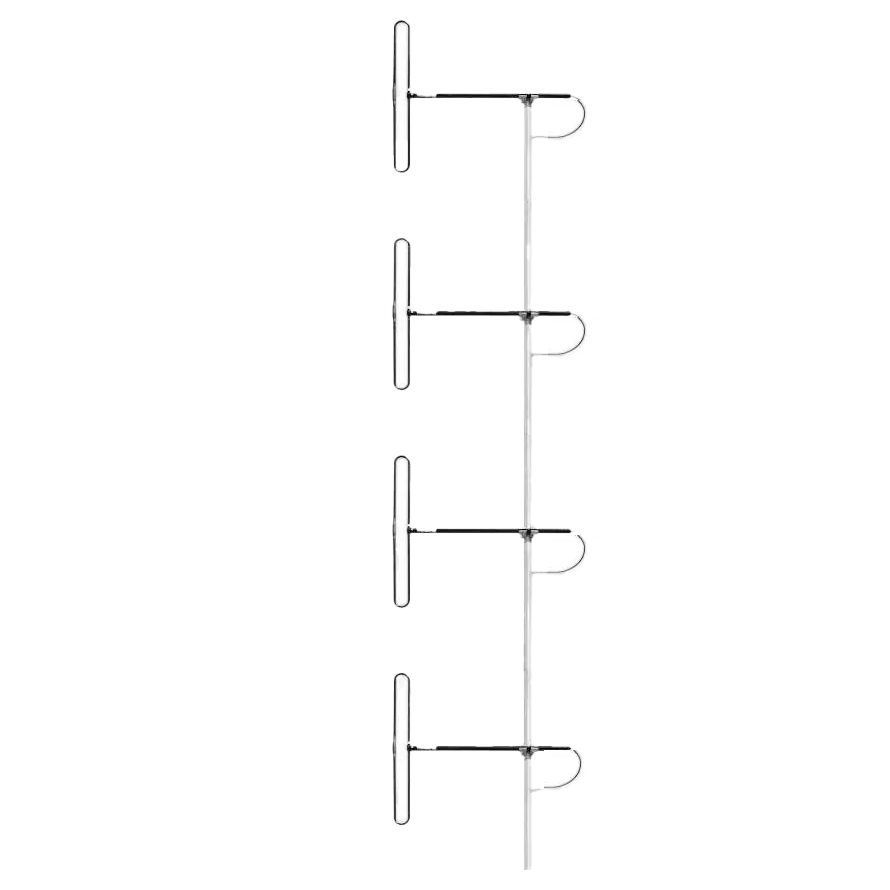

The Telewave ANT220D6-9 is an 4-element dipole array antenna with a precision phasing harness for optimum performance. The horizontal pattern is field-adjustable, to accommodate any current or future coverage requirements. The high gain, wide bandwidth, and high efficiency of the ANT220D6-9 is ideal for many applications, including trunking, business, public safety, and amateur radio.
Specific Frequency
216-252 MHz
Gain (dB)
6-9
Maximum Input Power (Watts)
500
Bandwidth >1.5 VSWR
36
Vert. Beamwidth (-3dB)
18 Deg.
Lightning Prot.
DC Ground
Direct Termination
N Male on Harness
Overall Length
72" x 33"
Support Pipe Dia.
Not Specified
Rated Wind Velocity (MPH)
175
Wind Load, (sq ft)
Not Specified
Mount Hdw. Incl.
Clamps included with Dipoles
Weight
36 Lbs.
Warranty
5 Years
