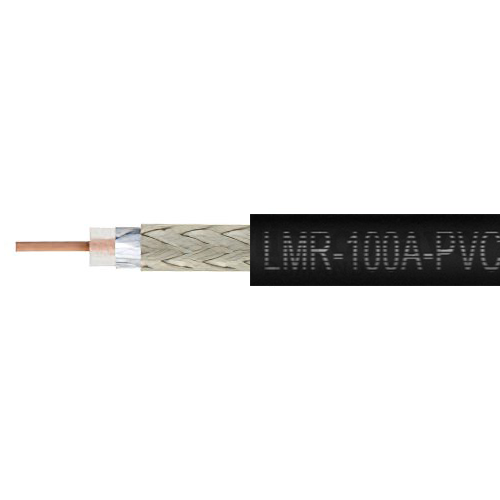

Times Microwave LMR-100A-PVC
Regular price
$109
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Times Microwave
Model #
LMR®-100A-PVC
Product Description
50 Ohm Coaxial Cable - Low Loss Flexible LMR®-100 Cable
The Times Microwave LMR®-100A-PVC LMR®100 flexible, low loss coaxial cable offers similar performance compared to corrugated copper cables but provides higher flexibility and simplified connectorization. This 50 Ohm coax cable has a stranded outer conductor and copper-clad steel center conductor. The 1/8 inch LMR®-100 transmission line has a foil shield and 90 percent coverage braid shield for lower loss. A PVC jacket adds flexibility. RG174 connectors should be used
Cable Type
1/8" Braided
Connectors
N/A
Shield %
100% CU Braid
Impedance
50 Ohms
VOP.
66%
Center Conductor
0.018in Solid
Insulation
Polyethylene
Other Spec
Black Jacket
Nom. core O.D. (in.)
0.065
Nom. O.D. (in.)
.105
Losses Shown are based on 100 Foot Length
loss 50 MHz
5.1 db
loss 100 MHz
7.3 db
loss 400 MHz
14.7 db
loss 900 MHz
22.8 db
loss 1000 MHz
24 db
Nom. Capacitance (pF/ft)
30.8
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
5 Years
