Description
Description
Manufacturer
Belden
Model #
8216
Product Description

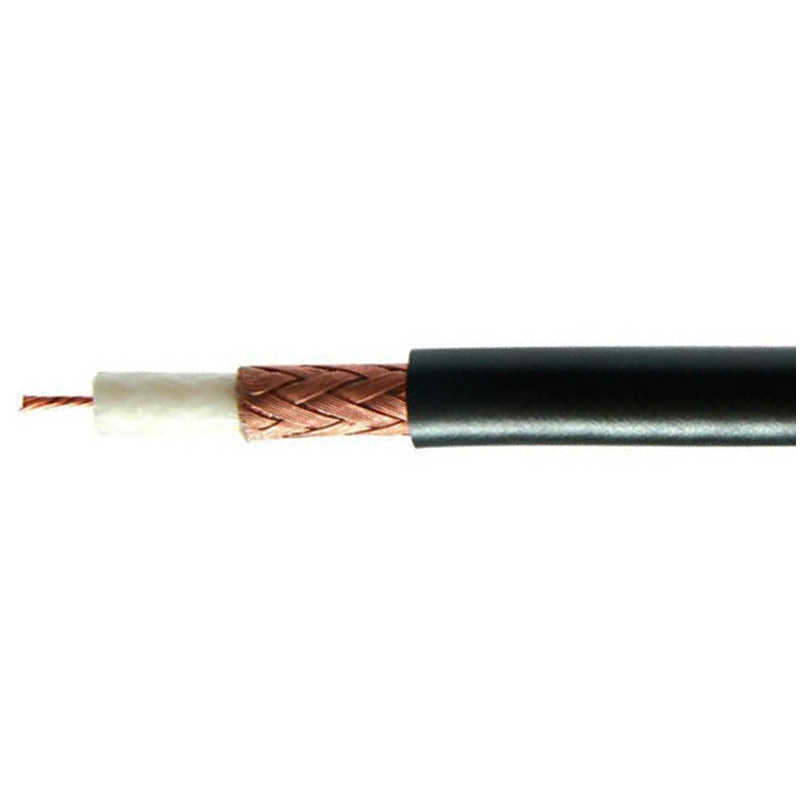

50 Ohm Coaxial Cable - Low Loss Flexible RG174A/U Cable The Belden 8216 RG174A/U mini coax cable is the smallest RG cable available. This 1/8 inch, 50 Ohm coax cable has a stranded center conductor and polyethylene dielectric. An 88 percent coverage braided shield prevents loss. The black PVC jacket makes this RG174A/U coaxial cable extra flexible.
Cable Type
1/8" Braided
Shield %
88% braid
Impedance
50 Ohms
VOP.
66%
Center Conductor
.019 stranded
Insulation
Polyethylene Black PVC Outer
Other Spec
Black Jacket
Nom. core O.D. (in.)
0.060
Nom. O.D. (in.) .101
Losses Shown are based on 100 Foot Length
loss 50 MHz 6.6 db
loss 100 MHz 8.9 db
loss 400 MHz 17.5 db
loss 900 MHz 28.2 db
loss 1000 MHz 30.0 db
loss 50 MHz 6.6 db
loss 100 MHz 8.9 db
loss 400 MHz 17.5 db
loss 900 MHz 28.2 db
loss 1000 MHz 30.0 db
Nom. Capacitance (pF/ft)
30.8
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
1 Year
