Description
Description
Manufacturer
TerraWave
Model #
TWS-100
Product Description

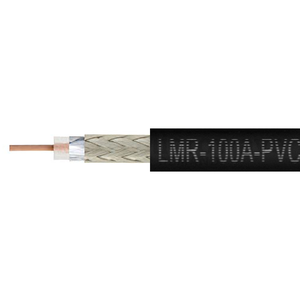

50 Ohm Coaxial Cable - Low Loss Flexible LMR-100 Cable
The TerraWave TWS-100 braided coaxial cable offers similar performance compared to corrugated copper cables but provides higher flexibility and simplified connectorization. This low loss 50 Ohm coax cable utilizes a braided shield for 90 percent coverage and lower loss. The 1/8 inch transmission line is similar in size to RG174 cable. RG174 or TWS-100 connectors are compatible
Cable Type
1/8" Braided
Shield %
90% braid
Impedance
50 Ohms
VOP.
66%
Center Conductor
0.018in Solid
Insulation
Polyethylene Foam
Other Spec
Black Jacket
Nom. core O.D. (in.)
0.065
Nom. O.D. (in.)
0.110
Losses Shown are based on 100 Foot Length
loss 50 MHz
5.1 db
loss 100 MHz
7.3 db
loss 400 MHz
14.7 db
loss 900 MHz
22.8 db
loss 1000 MHz
24 db
Nom. Capacitance (pF/ft)
30.8
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
5 Years
