Comprod Communications 66-13-44
Regular price
$2,99995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Manufacturer
Comprod Communications
Product Description

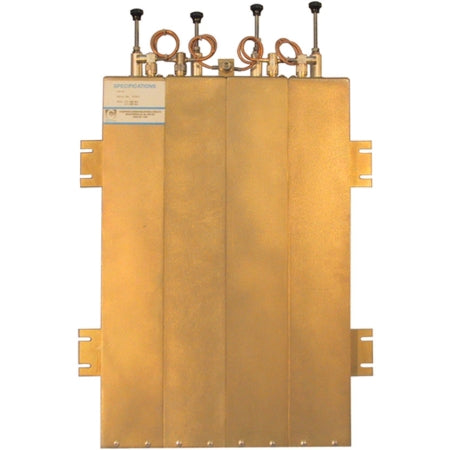

138-174 MHz (4 Cavity Duplexer)
Type
Pass/Reject
Freq. Range (MHz)
138-174
Application
A duplexer is a device that will allow both a transmitter and a receiver to operate from a singleantenna (freeing up tower space, and reducing cable runs etc.)
Product Narrative
Comprod base station duplexers are ideal for quick and easy installations. Selectivity can be determined by the field adjustable loops. Each cavity has a gold anodyne finish, silver plated loops and plated tuning rods. Specify TX and RX frequencies and insertion loss setting when ordering
Min. Seperation (MHz)
0.500
Maximum Input (Watts)
400
Insertion Loss (Tx/Ant-dB)
1.5
Insertion Loss (Rx/Ant-dB)
1.5
Isolation Rx (Notch-dB)
70
Isolation Tx Side
70
Connectors
N Female
No. of Cavities/Size
4 (4")
temp. Range deg-C
-40 to +60
Maximum VSWR @ 50 Ohms
1.5:1
Tuning Method
Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE
Size (HxWxD")
4" x 19" x 31"
Finish
Gold alodine
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
5 Year
