Description
Description
Manufacturer

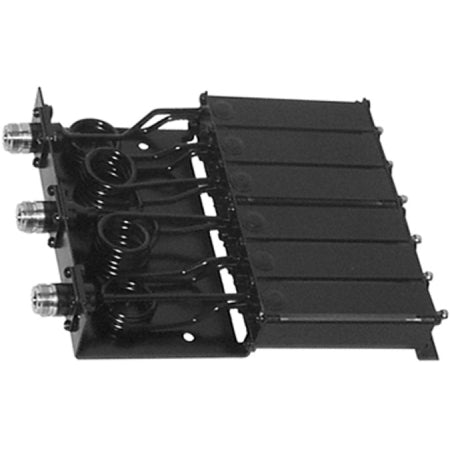

EMR Corp
Mfg. Model No.
64316-0/MC
Product Description
138-174 MHz Mobile Duplexer
Type
Mobile Duplexer
Freq. Range (MHz)
138-174
Application
A Duplexer combines a transmitter and a receiver to one antenna.
Product Narrative
VHF mobile duplexer with N terminations. These units are factory tuned to frequency spacing of 5 to 15 MHz. Specify TX and RX frequencies when ordering.
Min. Separation (MHz)
5
Maximum Input (Watts)
50
Insertion Loss (Tx/Ant-dB)
1.2
Insertion Loss (Rx/Ant-dB)
1.2
Isolation Rx (Notch-dB)
70
Isolation Tx Side
70
Connectors
N Female
No. of Cavities
6
temp. Range deg-C
Maximum VSWR @ 50 Ohms
Tuning Method
Factory Tuned
Size (HxWxD")
1 3/8" x 6 1/8" x 8 1/2"
Finish
Black
Customer
What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
5 Years
