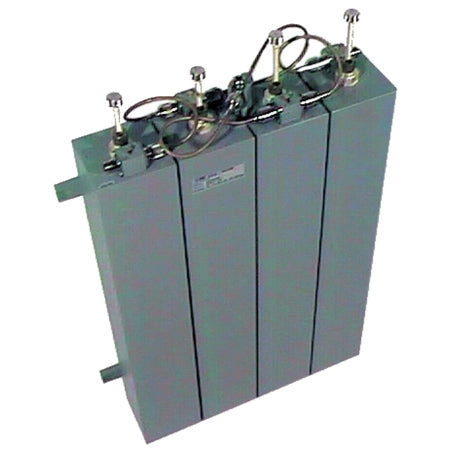

EMR 64544/SNC
Regular price
$2,79995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Manufacturer
EMR Corp.
Mfg. Model No.
64544/SNC
Product Description
150-170 MHz Duplexer
Type
Pass Notch r
Freq. Range (MHz)
150-170
Application
A duplexer is a device that will allow both a transmitter and a receiver to operate from a singleantenna (freeing up tower space, and reducing cable runs etc.)
Product Narrative
Notch Pass Duplexer Can optimize spacing, loss, power & isolation.
Min. Seperation (MHz)
1-15
Maximum Input (Watts)
150
Insertion Loss (Tx/Ant-dB)
1.2 @1MHz, .8 @15MHz
Insertion Loss (Rx/Ant-dB)
1.2 @1MHz, .8 @15MHz
Isolation Rx (Notch-dB)
80
Isolation Tx Side
80
Connectors
N Female
No. of Cavities/Size
4 (4")
temp. Range deg-C
-30 to +60
Maximum VSWR @ 50 Ohms
1.2:1
Tuning Method
Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE
Size (HxWxD")
34.5 x 20.125 x 19.25
Finish
Tek Black
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Customer
What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout
Mfg. Warranty
5 Year
