Description
Description
Manufacturer
EMR Corp.
Mfg. Model No.
64546/SNC
Product Description

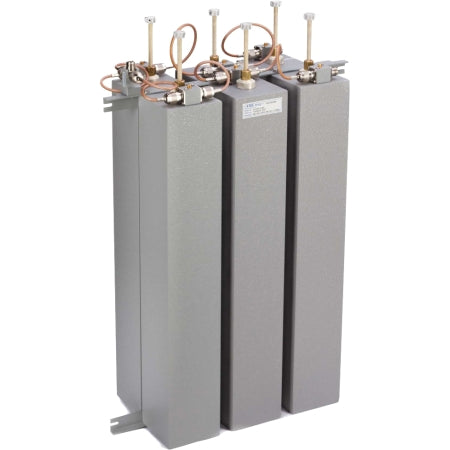

144-174 MHz Pass/Reject Duplexer
Type
Pass/Reject Duplexer
Freq. Range (MHz)
144-174
Application
A duplexer is a filter that allows a transmitter and receiver to one antenna.
Product Narrative
VHF pass/reject duplexer. Six inch cavities provide 90dB of isolation. Factory tuned.
Min. Seperation (MHz)
0.500
Maximum Input (Watts)
150
Insertion Loss (Tx/Ant-dB)
1.8
Insertion Loss (Rx/Ant-dB)
1.8
Isolation Rx (Notch-dB)
90 max.
Isolation Tx Side
90 max.
Connectors
N Female
No. of Cavities/Size
6 (4")
Tuning Method
Factory Tune
Size (HxWxD")
32 1/2" x 19" x 8 1/8"
Finish
Gray acrylic enamel
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Customer
What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout
Mfg. Warranty
5 Year
