EMR 64676/SNC
Regular price
$6,99995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Manufacturer
EMR Corp.
Mfg. Model No.
64676/SNC
Shipping Info
SHIPPING IS $155 ON THIS ITEM
Product Description

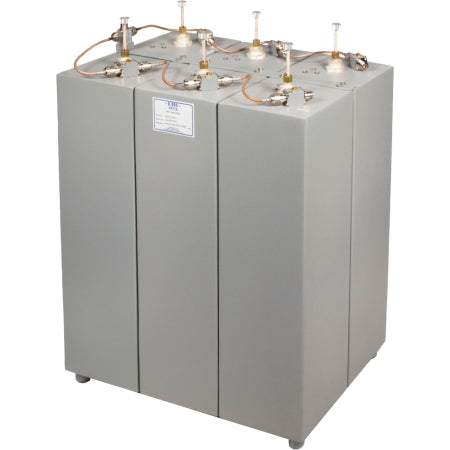

144-174 MHz Duplexer Pass/Notch
Type
Pass/Reject Duplexer
Freq. Range (MHz)
144-174
Application
A duplexer is a filter that allows a transmitter and receiver to one antenna.
Product Narrative
VHF pass/reject duplexer. These units are factory tuned to your requirements. Please give exact transmit and receive frequencies when ordering.
Min. Seperation (MHz)
0.300-15
Maximum Input (Watts)
200
Insertion Loss (Tx/Ant-dB)
1.6 max
Insertion Loss (Rx/Ant-dB)
1.6
Isolation Rx (Notch-dB)
90 max.
Isolation Tx Side
90 max.
Connectors
N Female
No. of Cavities/Size
6 (7")
Tuning Method
Factory Tune
Size (HxWxD")
32 1/2" x 22 1/2" x 14 1/8"
Finish
Gray acrylic enamel
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Customer
What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout
Mfg. Warranty
5 Year
