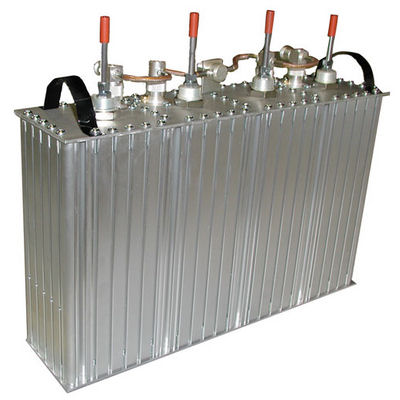

Sinclair Technologies Q-2222E-1
Regular price
$2,39995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
Sinclair
Mfg. Model No.
Q2222E-1
Product Description
144-165 MHz Duplexer
Type
Rack Mount Q-Circuit Duplexer
Freq. Range (MHz)
144-165
Product Narrative
Sinclair Res-Lok duplexer with Q-circuit design provides a quasi-bandpass response to suppress sideband transmitter noise between and adjacent to the duplex frequencies.
Min. Seperation (MHz)
3 MHz
Maximum Input (Watts)
120
Insertion Loss (Tx/Ant-dB)
1.5 @ .5 MHz/ 0.8 @ 3 MHz
Insertion Loss (Rx/Ant-dB)
1.5 @ .5 MHz/ 0.8 @ 3 MHz
Isolation Rx (Notch-dB)
60 @ .5 MHz/ 80 @ 3 MHz
Isolation Tx Side
60 @ .5 MHz/ 80 @ 3 MHz
Connectors
N Female
No. of Cavities/Size
4
temp. Range deg-C
-22 to +140
Maximum VSWR @ 50 Ohms
1.5:1
Tuning Method
Factory Tune
Size (HxWxD")
4.2"x19"x15"
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Customer
What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout
Mfg. Warranty
2 Year
