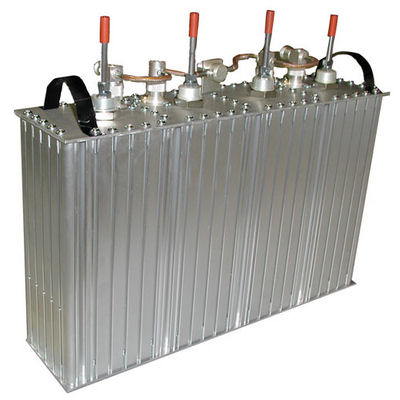

Sinclair Technologies Q-2222E-2
Regular price
$2,39995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
Sinclair
Mfg. Model No.
Q2222E-2
Product Description
160-174 MHz Duplexer
Type
Rack Mount Q-Circuit Duplexer
Freq. Range (MHz)
160-174
Product Narrative
VHF pass/reject duplexer. Specify your exact transmit and receive frequencies.
Min. Seperation (MHz)
3 MHz
Maximum Input (Watts)
120
Insertion Loss (Tx/Ant-dB)
0.8
Insertion Loss (Rx/Ant-dB)
0.8
Isolation Rx (Notch-dB)
80
Isolation Tx Side
80
Connectors
N Female
No. of Cavities/Size
4
temp. Range deg-C
-30 to +60
Maximum VSWR @ 50 Ohms
1.5:1
Tuning Method
Factory Tune
Size (HxWxD")
4.2"x19"x17"
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Customer
What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout
Mfg. Warranty
2 Year
