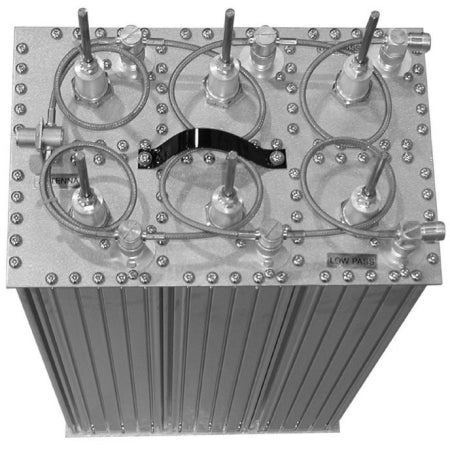

Sinclair Technologies Q2330E
Regular price
$3,19995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Sinclair
Mfg. Model No.
Q2330E
Product Description
132-174 MHz Duplexer
Type
Pass/Reject Duplexer
Freq. Range (MHz)
132-174
Application
A duplexer is a filter that allows a transmitter and receiver to operate on the same antenna.
Product Narrative
Q-Circuit duplexer. The "Res-Loc" design allows mounting on 19" rack with cavities horizontal or vertical. Can be mounted on floor or wall as well.
Min. Seperation (MHz)
0.500
Maximum Input (Watts)
350
Insertion Loss (Tx/Ant-dB)
1.5
Insertion Loss (Rx/Ant-dB)
1.5
Isolation Rx (Notch-dB)
85
Isolation Tx Side
85
Connectors
N Female
No. of Cavities/Size
6 (4" square)
temp. Range deg-C
-40 to +60
Maximum VSWR @ 50 Ohms
1.5:1
Tuning Method
Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE
Size (HxWxD")
8.37 x 19 x 30.3
Finish
Alodined Aluminum
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Customer
What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout
Mfg. Warranty
2 Year
