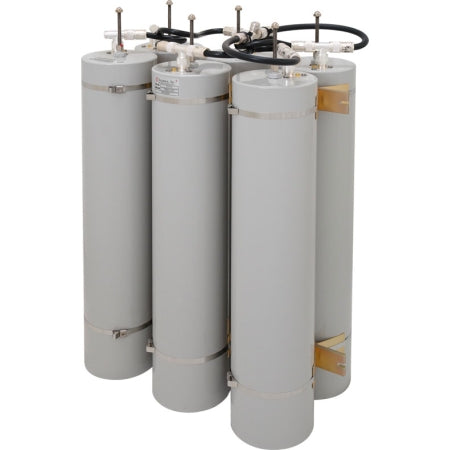

TeleWave TPCD-1556
Regular price
$5,24195
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Telewave, Inc.
Mfg. Model No.
TPCD1556
IMPORTANT
PLEASE ALLOW 14 TO 21 DAYS FOR DELIVERY
Product Description
148-174 Pass Duplexer
Type
Bandpass
Freq. Range (MHz)
148-174
Application
A duplexer is a device that will allow both a transmitter and a receiver to operate from a single antenna (freeing up tower space, and reducing cable runs etc.)
Product Narrative
Bandpass duplexer. Pass characteristic provides protection from nearby transmitters and sideband noise. Mounts vertically on 19" rack.
Min. Seperation (MHz)
2
Maximum Input (Watts)
350
Insertion Loss (Tx/Ant-dB)
1.5
Insertion Loss (Rx/Ant-dB)
1.5
Isolation Rx (Notch-dB)
68
Isolation Tx Side
70
Connectors
N Female
No. of Cavities/Size
6 (5")
temp. Range deg-C
-30 to +70
Maximum VSWR @ 50 Ohms
1.5:1
Tuning Method
Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE
Size (HxWxD")
11 x 19 x 29
Finish
Gray
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Customer
What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout
Mfg. Warranty
1 Year
