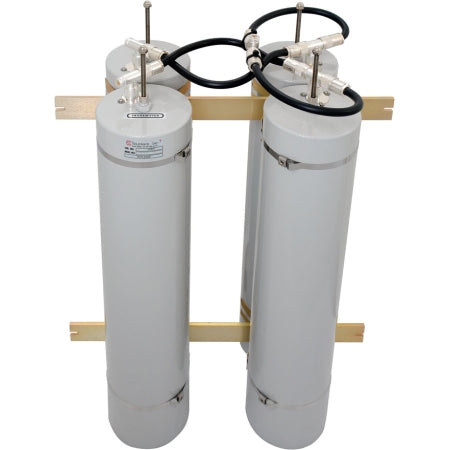

TeleWave TPRD-1454
Regular price
$2,99495
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Telewave, Inc.
Mfg. Model No.
TPRD1454
Product Description
118-148 MHx Duplexer
Type
Pass/Reject Duplexer
Freq. Range (MHz)
118-148
Application
A duplexer is a device that will allow both a transmitter and a receiver to operate from a single antenna (freeing up tower space, and reducing cable runs etc.)
Product Narrative
Pass/reject duplexer. Adjustable coupling. Mounts to 19" rack with cavities positioned vertically.
Min. Seperation (MHz)
0.600 - 1.4
Maximum Input (Watts)
350
Insertion Loss (Tx/Ant-dB)
1.5
Insertion Loss (Rx/Ant-dB)
1.5
Isolation Rx (Notch-dB)
77
Isolation Tx Side
77
Connectors
N Female
No. of Cavities/Size
4 (5")
temp. Range deg-C
-30 to +70
Maximum VSWR @ 50 Ohms
1.5:1
Tuning Method
Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE
Size (HxWxD")
11 x 19 x 28
Finish
Grey
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Customer
What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout
Mfg. Warranty
1 Year
