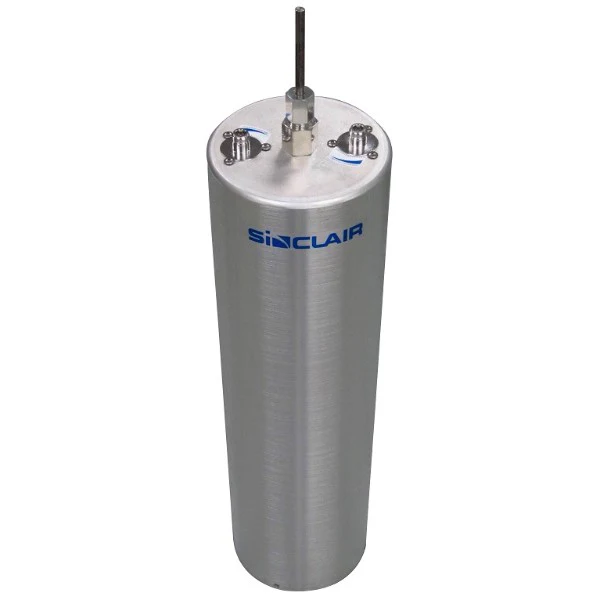

Sinclair Technologies FP20107-3
Regular price
$69995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
Sinclair
Mfg. Model No.
FP20107-3
Product Description
148-174 MHz Bandpass Cavity
Filter Type
Bandpass
Freq. Range (MHz)
148-174
Maximum Input (Watts)
400 @0.5 dB IL
Application
A cavity is a resonant filter. It will either pass or reject a frequency or range of freqs. It offer protection from interference in a system.
Product Narrative
High-Q filter. Aluminum cylinder, brass/copper inner conductor, Invar rod.
Insertion Loss (dB)
0.5 to 3.0
Connectors
N/Female
No. of Cavities/Size
1 (7")
Electrical Length
1/4 Wave
temp. Range deg-C
-30 to +60
Maximum VSWR @ 50 Ohms
1.5:1 @ 1.5 dB IL
Tuning Method
Factory or Field Tune
Maximum Size (HxWxD")
32.5 x 7 x 7
Finish
Grey
Comment
*Specify Frequency
Ask Customer
What is the pass frequency? Specify in notes at checkout
Mfg. Warranty
2 Year
