Description
Description
Manufacturer
Sinclair
Mfg. Model No.
FP20401B-1-1
Shipping Info
Please allow 14 to 21 Days for Delivery
Product Description

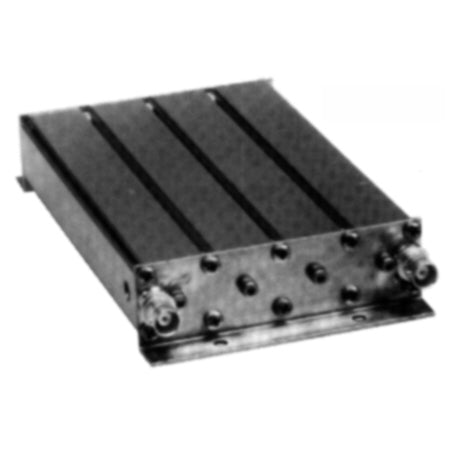

138-150 MHz Preselector
Filter Type
Preselector
Freq. Range (MHz)
138-150
Maximum Input (Watts)
Receive Only
Application
A preselector is a bandpass filter that passes a range of frequencies. It is used to protect receivers from outside interference.
Product Narrative
Compact helical preselector. 1 MHz bandwidth. Mounts to any flat surface.
Insertion Loss (dB)
2.2
Connectors
BNC/Female
No. of Cavities/Size
4
Electrical Length
Helical
temp. Range deg-C
-30 to +60
Maximum VSWR @ 50 Ohms
1.5:1
Tuning Method
Factory Tune
Maximum Size (HxWxD")
1.3 x 4.2 x 4.9
Finish
Grey
Comment
*Specify Frequency
Ask Customer
What is the pass frequency? What is the reject frequency? Specify in notes at checkout
Mfg. Warranty
2 Year
