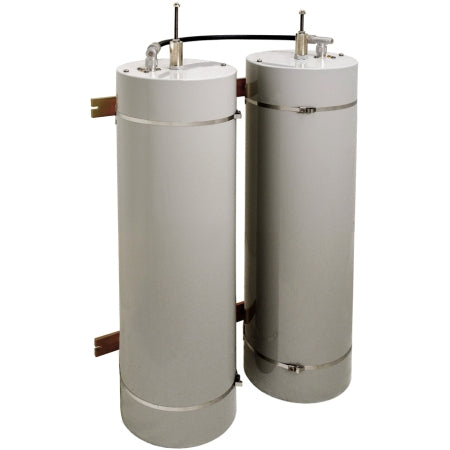

TeleWave TPRC1508-2
Regular price
$2,13895
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Telewave, Inc.
Mfg. Model No.
TPRC1508-2
Product Description
148-174 MHz Pass/Reject Cav.
Filter Type
Pass-Reject
Freq. Range (MHz)
148-174
Maximum Input (Watts)
350
Application
A cavity is a resonant filter. It will either pass or reject a frequency or band of freqs. This prevents adjacent channel interference on either TX or RX.
Insertion Loss (dB)
0.5 to 2.0
Min. Seperation (MHz)
0.300
Connectors
N Female
No. of Cavities/Size
2 (8")
Electrical Length
1/4 Wave
temp. Range deg-C
-30 to +70 C
Maximum VSWR @ 50 Ohms
1.5 :1
Tuning Method
Factory Tune
Maximum Size (HxWxD")
36 x 20 x 8
Finish
Grey
Comment
*Specify Frequency
Ask Customer
What is the pass frequency? Specify in notes at checkout
Mfg. Warranty
1 Year
