Description
Description
Manufacturer
Telewave, Inc.
Mfg. Model No.
TWPC2208-2
Product Description

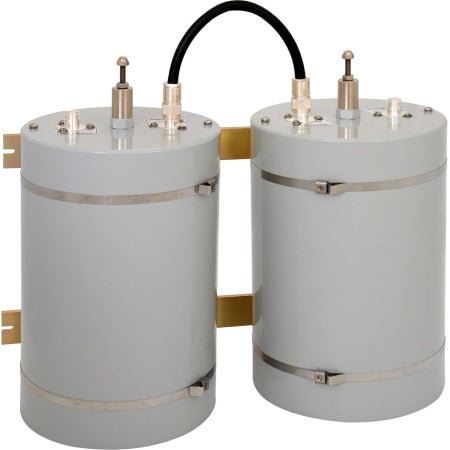

220-300 Dual BP Cavity
Filter Type
Bandpass
Freq. Range (MHz)
220-300
Maximum Input (Watts)
150-350
Product Narrative
This bandpass cavity is ideal for use at any frequency congested site where maximum protection is needed from transmitter spurious radiation and receiver desensitization.
Insertion Loss (dB)
1.0 to 4.0
Connectors
N Female
No. of Cavities/Size
2/ 8"
Electrical Length
1/4 wave
temp. Range deg-C
-30 to +70 C
Maximum VSWR @ 50 Ohms
1.5 to 1
Tuning Method
Factory Tune
Maximum Size (HxWxD")
22" x 19" x 8"
Finish
Acrylic Enamel
Comment
*Specify Pass Frequency
Ask Customer
What is the pass frequency? Specify in notes at checkout
Mfg. Warranty
1 Year
