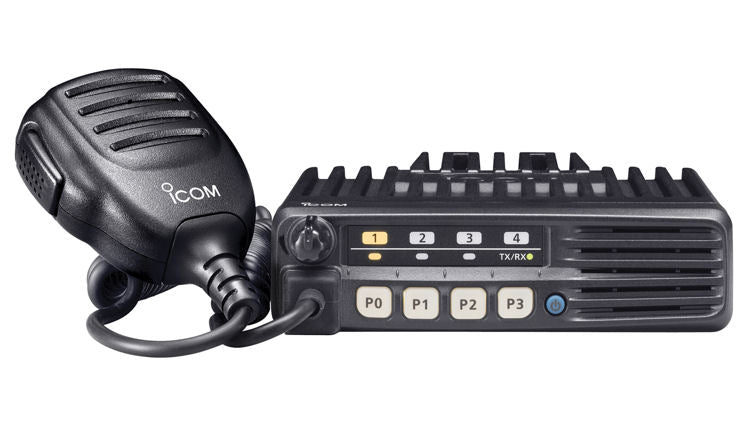

ICOM F5011

Simple operation for instant communication

The F5011 has 8 channels. The P0-P3 programmable buttons allow you to customize the radio to suit your needs and convenience.

Most popular signalings built-in

Use the bult-in 2-Tone, 5-Tone, MDC 1200, CTCSSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.

Multiple 2-Tone, multiple 5-Tone

Up to ten 2-Tone or eight 5_tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan audio output are programmable to respond to each tone.

MDC 1200 compatible

The F5011 has a built-in MDC 1200 for transmitting a PTT ID and emergency * signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.
(*No ACK transmission)

Enhanced scan features

The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.

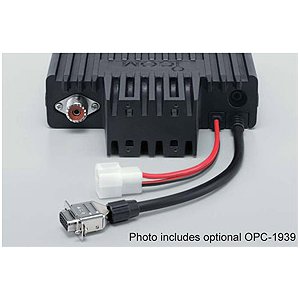

Remote channel control with optional ACC cable

The optional ACC cable allows you to connect with various external devices to control audio output, modulated singal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.

Built military rugged

The F5011 is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.

Other features

• 4W (typ.) front mounted speaker
• Wide frequency coverage (136-174MHz)
• Wide/narrow channel spacing (25, 12.5kHz) programmable
• Microphone hanger action programmable
• Optional DTMF microphone
• Optional voice scrambler unit, UT-109R or UT-110R
• DTMF autodial and optional DTMF decoder, UT-108R
• PC programmable
• Talk around function
• Power-on password function
• Nuisance delete function
• Time-out-timer, lock-out penatly timer
