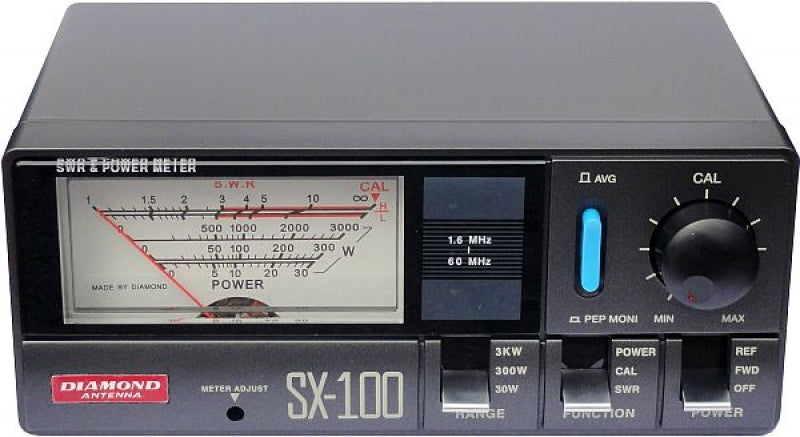

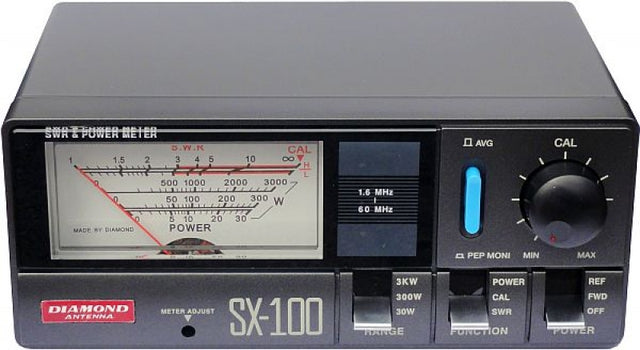

The SX100 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations.
Special Features:
- Illuminated meter*
- Switchable r.m.s. or peak power
- Measures forward, reflected & VSWR power
- 6"W x 2"H x 4"D, 2 lbs.
Specifications:
Frequency:
1.6-60 MHz
Power Ranges:
30/300/3KW*

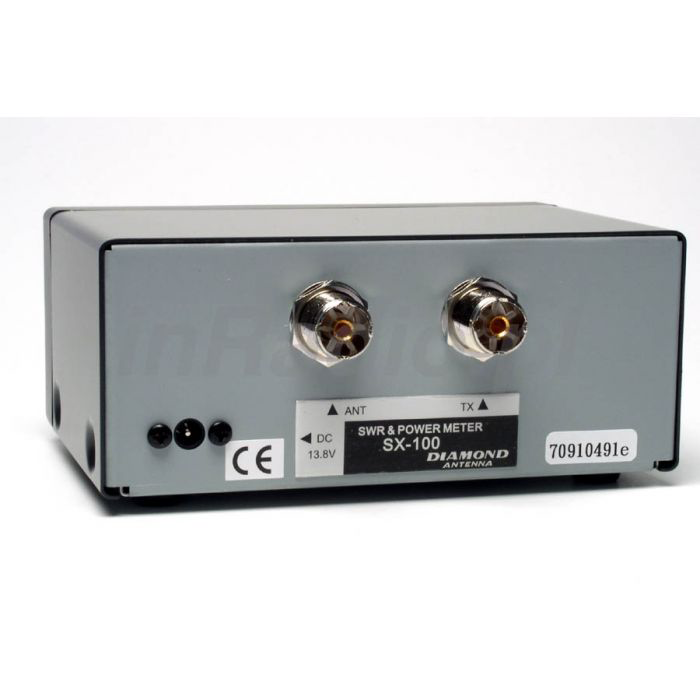

Connector:
UHF Female (SO-239)
Min. Power SWR Test::
20W
Remarks: *1200W continuous AM/CW
