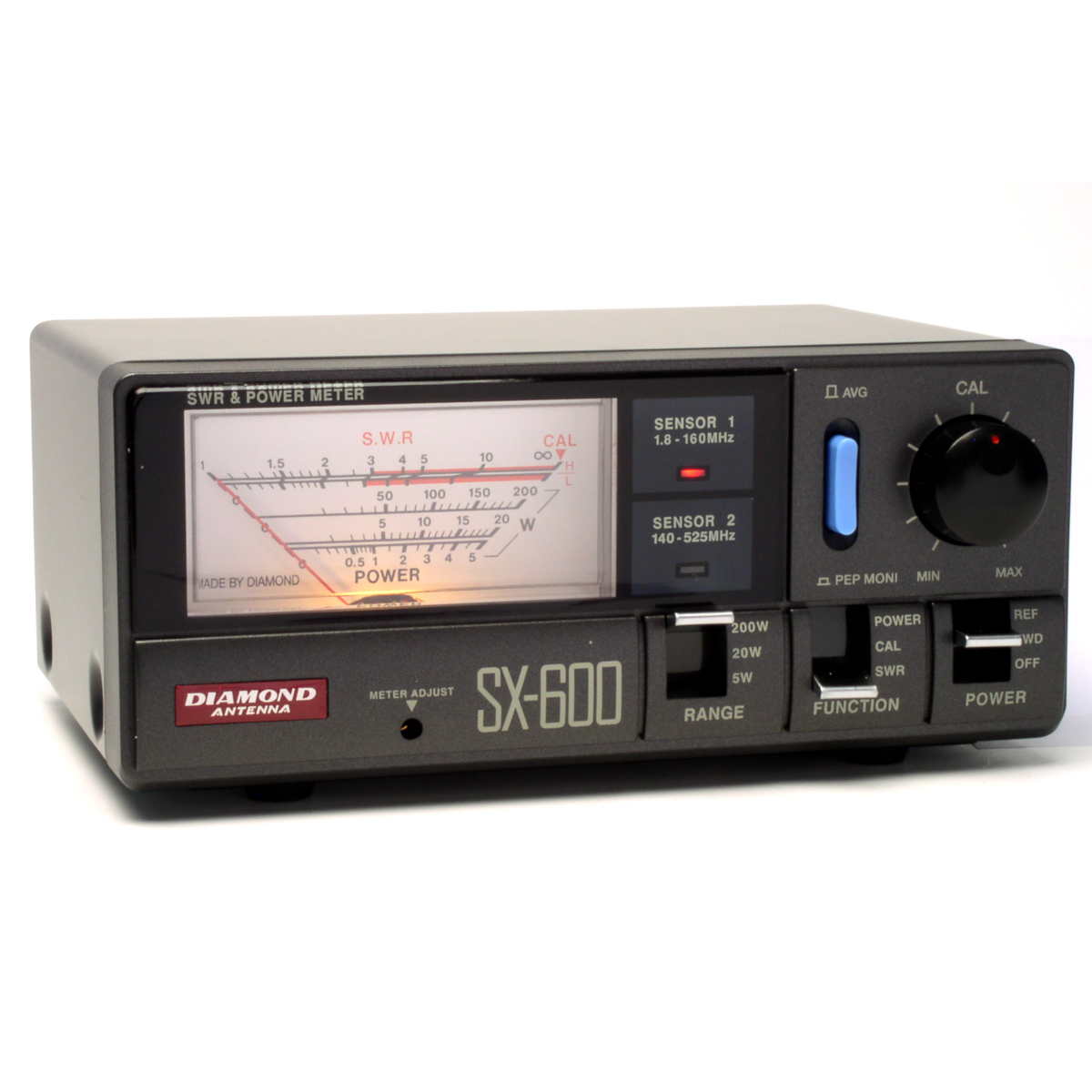

The SX-600 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.
Special Features:
- Illuminated meter
- Switchable r.m.s. or peak power
- Measures forward, reflected & VSWR power
- 6"W x 2"H x 4"D, 2 lbs.
Specifications:
Frequency:
1.8-160/140-525 MHz
Power Ranges:
5/20/200
Connector:
SO-239
Min. Power SWR Test::
4W
Connectors
UHF Female (SO-239)
Remarks: 12VDC @ 50mA is required for illuminated display.
