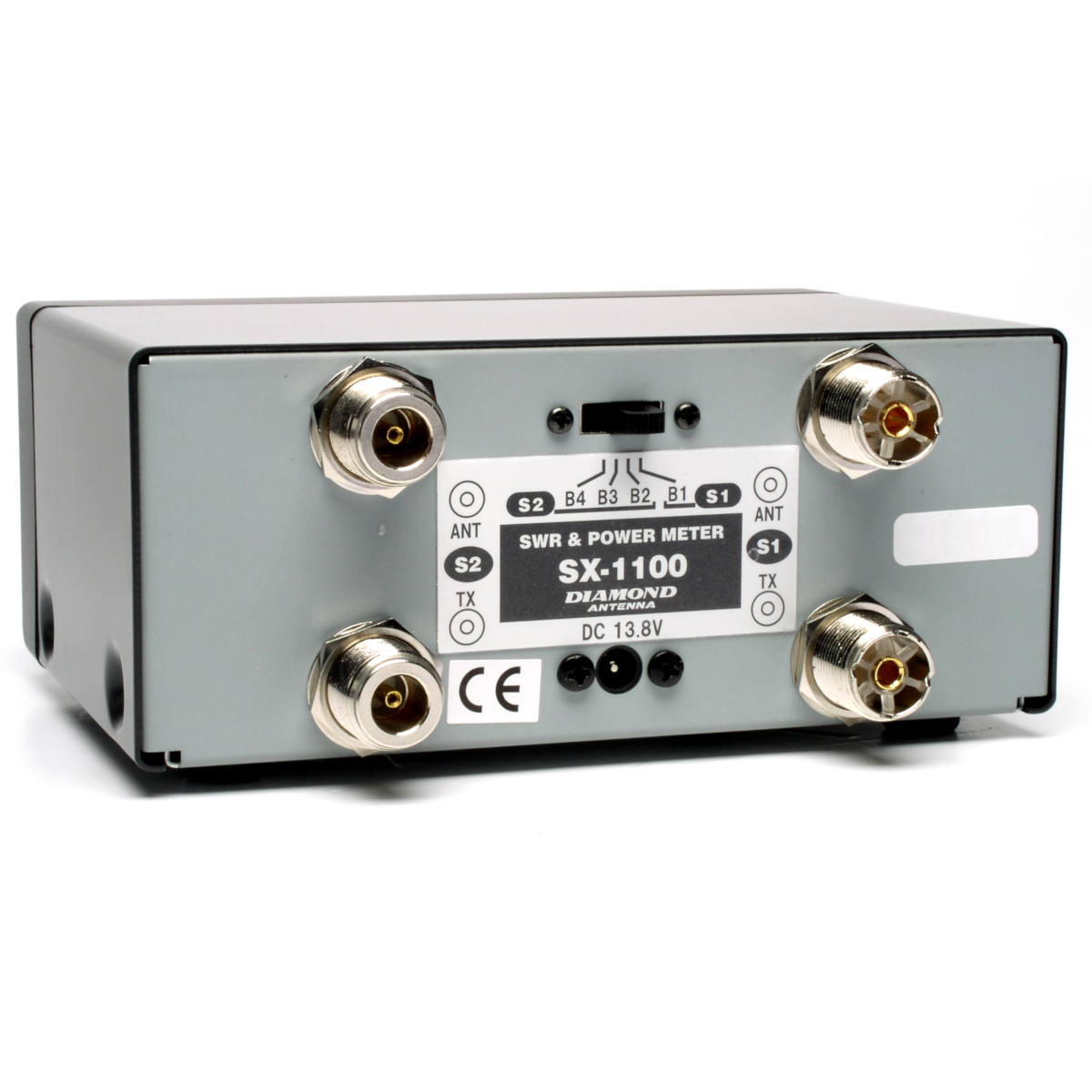

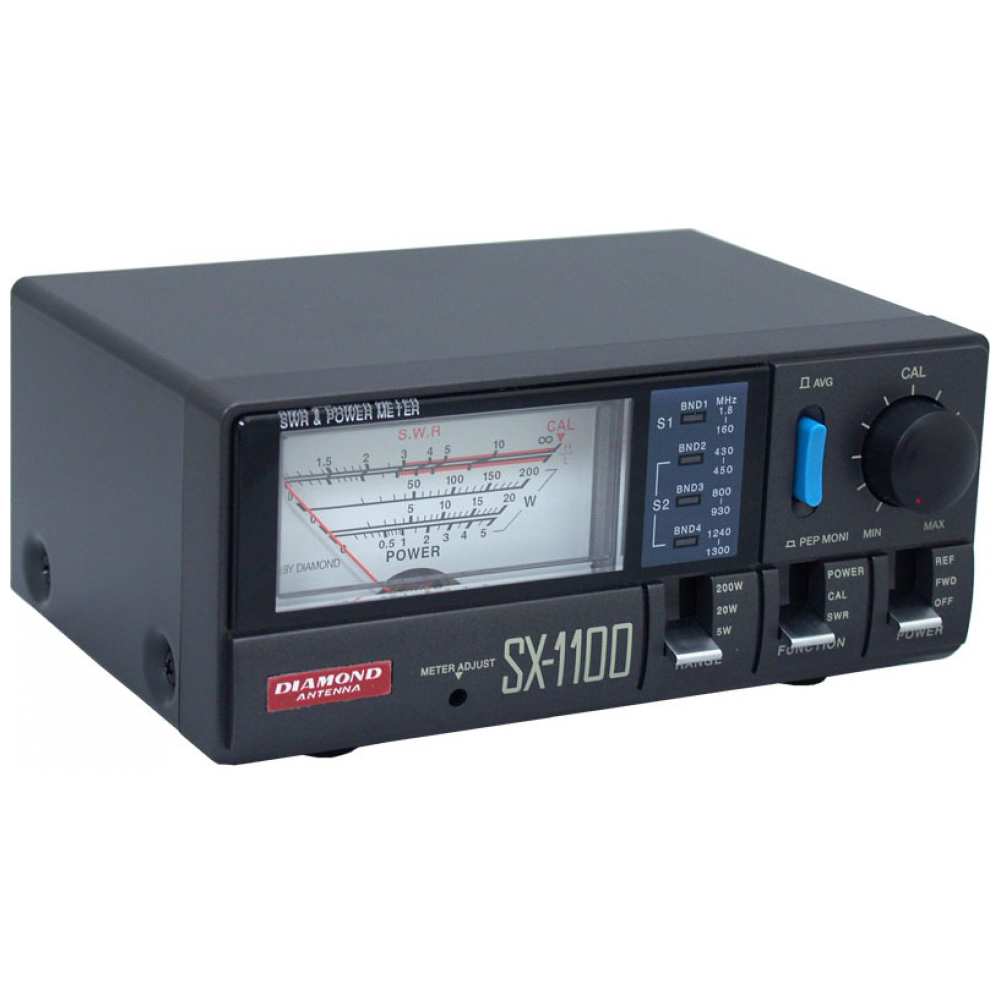

The SX-1100 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.
Special Features:
- Illuminated meter
- Switchable r.m.s. or peak power
- Measures forward, reflected & VSWR power
- 6"W x 2"H x 4"D, 2 lbs.
Specifications:
Frequency MHz:
1.8-160, 430-450
800-930, 1240-1300
800-930, 1240-1300
Connectors:
HF-VHF: SO-239
UHF: Type-N Female
UHF: Type-N Female
