ICOM F5011 VHF Base Station
DOCUMENTS
DOCUMENTS
Brochure
Description
Description
Just plug it into any standard household 110 volt AC outlet, plug in your antenna and you are in business!
Price Includes:
- ICOM F5011 VHF 50 Watt Radio (136-174 MHz Coverage)

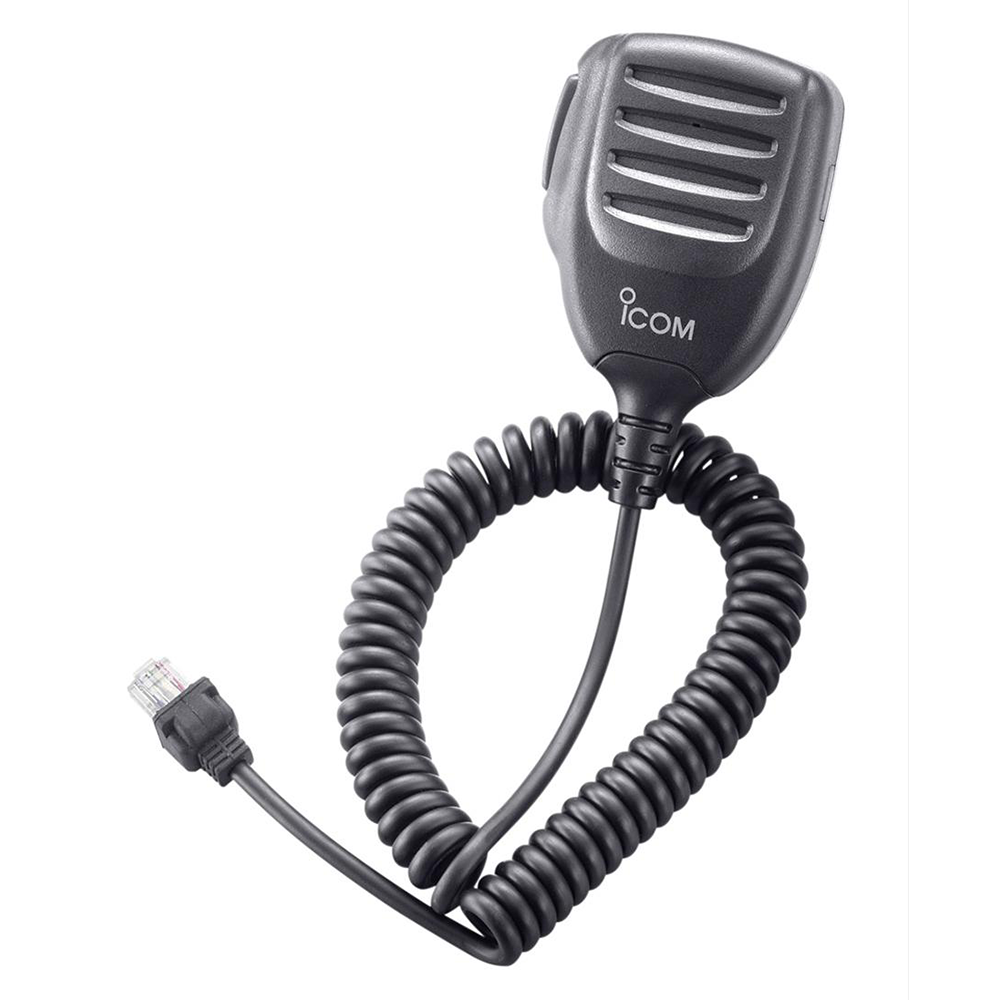

- Hand Microphone

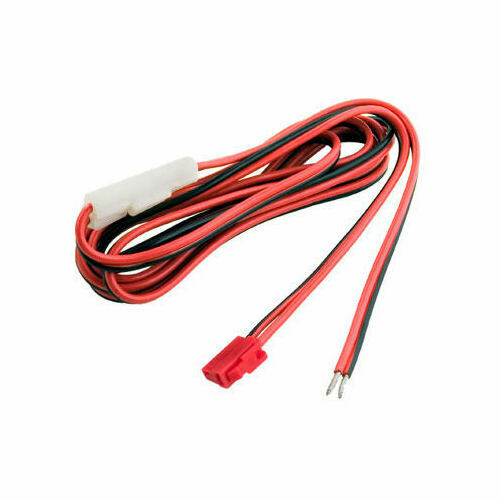

- DC Power Cable

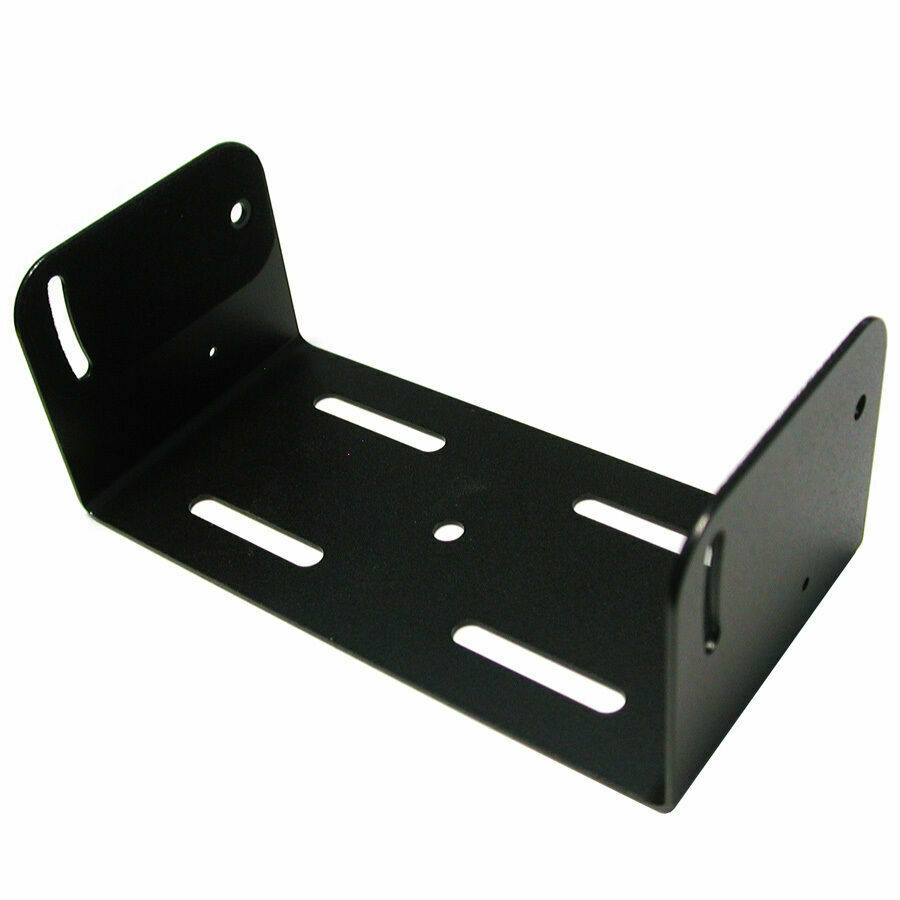

- Mounting Bracket (included but intended for mobile operation)
- Microphone Hanger

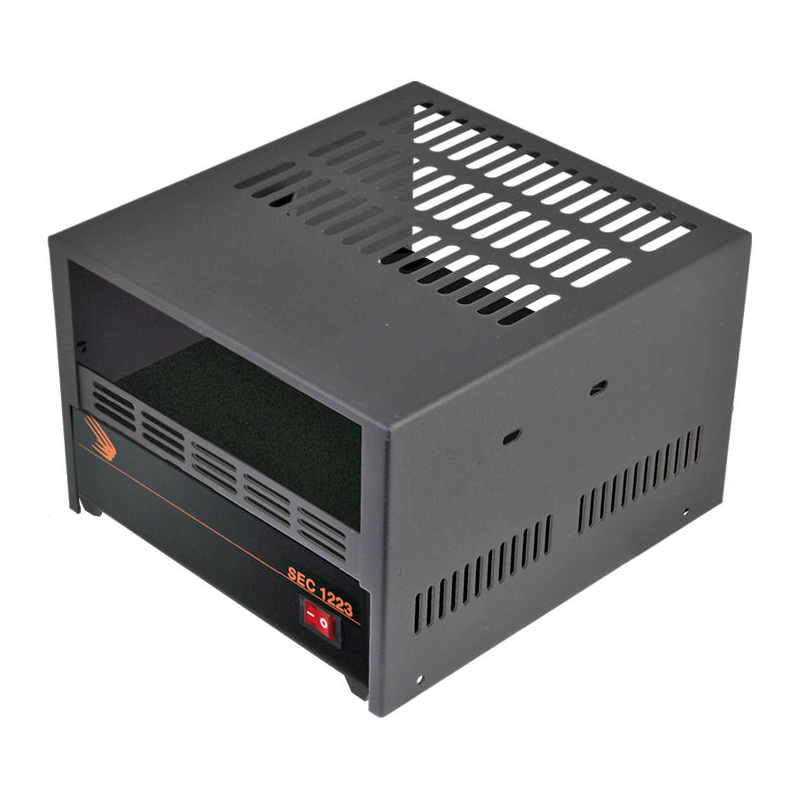

- Matching Power Supply with Cabinet for F5011 Radios
- 3 Year Manufacturers Warranty on Radio (1 year on power supply)
Note: If you need an antenna you will need one that's made for the frequency or range of frequencies that you need to transmit on. Also, you will need a length of coaxial cable terminated with a PL-259 (UHF Male) type connector for the ICOM F5011 Radio. Please visit our antenna tutorial page if you need assistance on choosing the right antenna.

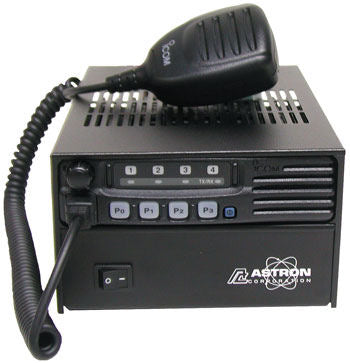

This package includes the ICOM F5011 VHF radio (pictured below) and appropriate DC Power supply.
Simple Operation, Versatile Functions and Rugged Construction for Your Day-to-day Communication Needs
Simple operation for instant communication
The IC-F5011 series has 8 channels. The P0-P3 programmable buttons allow you to customize the radio to suit your needs and convenience.
Most popular signalings built-in
Use the bult-in 2-Tone, 5-Tone, MDC 1200, CTCSSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.
Multiple 2-Tone, multiple 5-Tone
Up to ten 2-Tone or eight 5_tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan audio output are programmable to respond to each tone.
MDC 1200 compatible
The IC-F5011 series has a built-in MDC 1200 for transmitting a PTT ID and emergency * signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.
(*No ACK transmission)
Enhanced scan features
The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.
Remote channel control with optional ACC cable
The optional ACC cable allows you to connect with various external devices to control audio output, modulated singal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.
Built military rugged
The IC-F5011 series is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.
Other features
- 4W (typ.) front mounted speaker
- Wide frequency coverage (136-174 MHz)
- 50 Watt Transmit Output Power
- Wide/narrow channel spacing (25, 12.5kHz) programmable
- Microphone hanger action programmable
- Optional DTMF microphone
- Optional voice scrambler unit, UT-109R or UT-110R
- DTMF autodial and optional DTMF decoder, UT-108R
- PC programmable
- Talk around function
- Power-on password function
- Nuisance delete function
- Time-out-timer, lock-out penatly timer
